Description

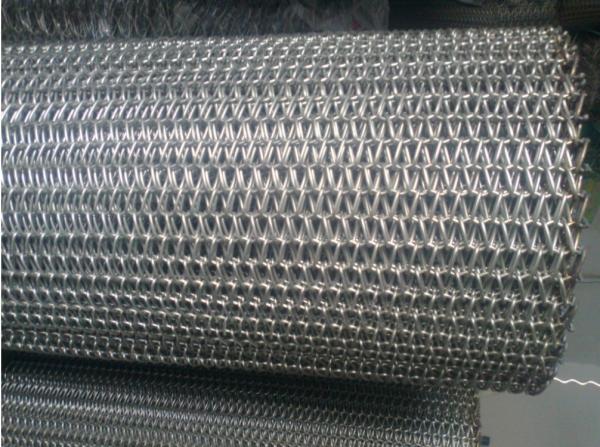

Chain Driven Mesh Belts is a main conveyor form of transportation,
is a wire conveyor belt to be attached to chain on both side. Belt
and chain are synchronized running through an intermediate
connecting rod.
Provide efficient operation in applications where friction drive
belts are not adequate.
In cases such as travel-up inclines, under heavy loads, for long
distances, through quenching liquids, cooking oils or other
slippery conditions.
Chain driven mesh belt is also the only belts that are self
supporting. It can provide efficient operation in applications
where friction drive belt would not be desirable.
Any mesh can be used in a chain driven construction, but the
selection is made on the basis of what is needed to support the
product. Balanced weave kind should be given first consideration,
as it is economical and appropriate for most conditions.
1: the furface is flat , smooth , so that heavy loading can be
transported
2: the allowable tension is high , so that the belt can be used for
processing under pressure
3: it is drived by sprocket , not occur
4: various types of chain can be applied by ajusting belt pitch
Metal conveyor belt mesh,mesh conveyor belt Specification
|
| Material | stainless steel 304/316 |
| Rod Pitch | 5.0mm-40mm |
| strip thickness | 1.0mm-10mm |
| rod diameter | 0.8-6.0mm |
| Overall Width | 0.5m-2m |
| up opening width/ | 5.0mm-30mm |
| down opening width | 5.0mm-30mm |
| Features | |
Flexible mesh conveyor belts is a flat metal sheet and composed of
round wire, mesh belt light weight, mesh gap large net surface
vouchers, running smoothly and will not go the wrong |
|
Avdantage mesh conveyor belts :
width:150~5500mm speed:0.15~0.50m/min Temperature:-40°C~1050°C
Edage form: bay-side, duntou, weld etc.
1. Convenient and flexible use
2. Good transparency
3. Anti-high temperature and anti-corrosion
4. Steady performance.
5. Surface smooth, uniform through-hole
6. Standard chain drive, running smoothly, no deviation phenomenon
7. Load capacity and strong tensile
8. Easy to clean, easy to maintain
Why Us
1. Strict QC System
We have been engaged in production of shale shaker screen fore more
than 15 years, we have strict quality control system and we have
applied the patent of the screen, we can assure the best quality of
every sheet of screen we produced.
2. Direct Manufacturer
We’re one direct manufacturer, which is very close to Tianjin Port.
We are the earliest manufacturer of Shale Shaker Screen which is
founded in 1989.
3. Short Production
Time We can complete production within 10 days and we usually
prepare the material for every kind of our product. So we can
deliver the goods as soon as possible.
4. In Return
When your annual purchase amount is over 10000 sheet, we’ll give
you 2%-3% of the amount in return.
5. Best After-sale Service
We have professional after-sales service team, which consist of
five people, and each has more than three years experience. If you
have any questions after you receive the cargo, you can call us or
send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for
your trial to test if you have great intention to order
