Chain Edge Stainless Steel Wire Conveyor Belt, SUS304/310/316
Available!

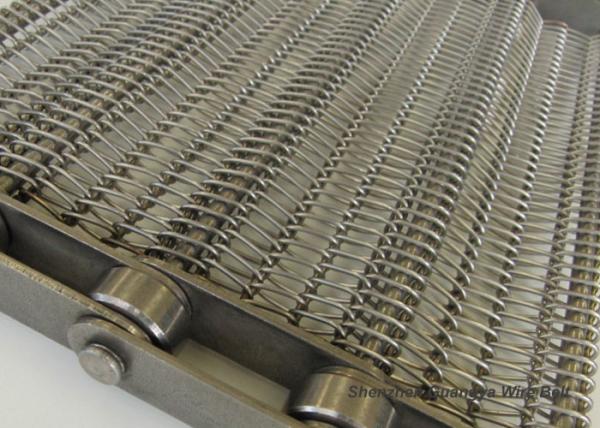

Chain edge wire conveyor belt is reinforced wire belt by rod and
conveyor chain according to specific model. Chain, rod and wire
belt can be various design according to different machinery
application such as cleaning, baking and freezing etc. Any
available stainless steel material can be used.
Each conveyor belt can be custom design according to specific
application, just tell us requirement and we will provide you a
perfect belt for you!
Chain edge conveyor belt properties
| Material | stainless steel |
| Standrad | DIN, JIS |
| Type | Food conveyor belt |
| Mesh Size | 5*8 - 35*50mm |
| Thickness | 1.5-3.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | can be used in almost every conveyor solution |
| Introduction | chain edge conveyor belt is reinforced by rod and chain for high
load purpose. |
| Features | Acid-resisting, alkali-resisting, high temperature resisting,
strong tension and good abrasion performance It also has advantage of stable, fine and high precision filtering
performance. Long service life |
Chain edge conveyor belt Application
- Heating, baking machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf
machine pretreatment mesh belt, chain network.
Stainless steel properties
Grade | Composition(%) | Temperature resisting | Specifications |
C | Si | Mn | Ni | Cr | Mo |
1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | |
304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
