Stainless Steel Wire Mesh Belt for Powder Metallurgy Sintering
Furnace
Powder metallurgy sintering furnace belt works with high
temperature and long time in closed tunnel. We suggest at least
SUS304 grade stainless steel or SUS310S for stable and long time
problem free operation. Sintering mesh belt is normally available
as honeycomb design for high strength purpose. We can also have
other design according to specific production requirements. It
provides very smooth surface and stable structure for furnace
conveyor system. The belt is normally designed with chain edge for
smooth operation.
Our furnace wire belts is generally made of 304, 310, 316L
stainless steel wire. It is rust resistant, oil resistant,
corrosion resistant, flat surface, convey stable, high temperature
resistant, cool resistant, long service time.
Furnace wire belt general properties table
| MESH BELT |
| Spcification | Customerization according customer requirement |
| Advantage | To prevent the workpiece rolled out mesh belt edge |
| Can put a small wokrpiece on the mesh belt directly , don't need
the workpiece tray |
| Workpieces | Light and weight wokrpieces , and others |
| Apply the furnace type | Muffle mesh belt heat treatment line , continuous annealing
furnace , continuous tempering furnace,Continuous aging furnace,
conveyor belt heat treatment furnace, and so on . |
|
Working
Temperature | Working temperature | Material |
| Below 650°C | 304 |
| Below 800°C | 321 |
| Below 800°C | 316L(Corrosion prevention) |
| Below 1100°C | 310S |
| Below 1200°C | 314
|
General specifications
- open mesh construction for quick drainage and free air circulation
- a smooth, flat surface
- sanitary-easily clean
- replacement available of damaged sections
- endless splicing
- high strength to weight ratio
- positive sprocket drive
Different grade stainless steel properties
| Material | Maximum Wire Operating Temperature °C |
| Carbon Steel (40/45) | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum (3% Chrome) | 700 |
| 304 Stainless Steel (1.4301) | 750 |
| 321 Stainless Steel (1.4541) | 750 |
| 316 Stainless Steel (1.4401) | 800 |
| 316L Stainless Steel (1.4404) | 800 |
| 314 Stainless Steel (1.4841) | 1120 (Avoid use at 800-900°C) |
| 37/18 Nickel Chrome (1.4864) | 1120 |
| 80/20 Nickel Chrome (2.4869) | 1150 |
| Inconel 600 (2.4816) | 1150 |
| Inconel 601 (2.4851) | 1150 |

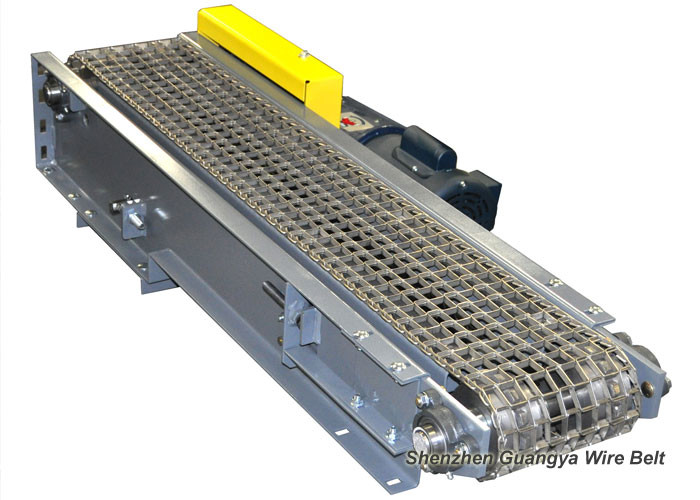

Wire conveyor belt
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: What's the available stainless steel model?
A: We can produce by all available stainless steel models upon
customer requirements such as SUS201/202/304/310S/314/316L/430 etc.
We will also help choose the right model according to customer side
production requirement.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
Q: How do I make installation?
A: We will provide detailed instructions about installation process
and offer necessary suggestions based our exact working experience.
