Stainless Steel Compound Weave Conveyor belt for Tunnel Furnace

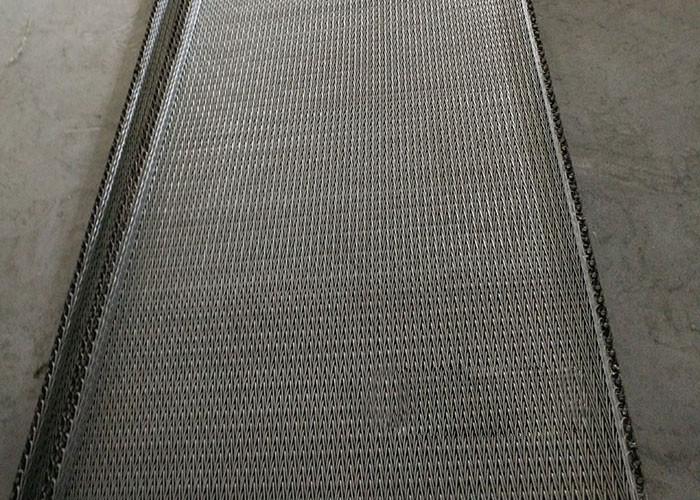

The compound weave conveyor belt is also known as cord weave belt.
The structure of compound weave conveyor belt is similar to the
balanced weave conveyor belt, which has multiple spirals and cross
rods per pitch. The compound weave conveyor belt has closer mesh
than the balanced conveyor belt. The closer mesh makes compound
weave conveyor belt a high density and high strength surface with
very smooth surface design. The belt can also come with chain edge
according to different machinery application.
Each conveyor belt can be custom design according to specific
application, such as folded side guard or side plate or chain rod
etc.
General mesh size & weight table
| Item | Coil pitch
(mm) | Coil wire diameter
(mm) | Cross wire pitch
(mm) | Cross wire diameter
(mm) | Number of cross wires per coil
(mm) |
|---|
| GYC-01 | 5.08 | 1.22 | 3.05 | 1.22 | 3 |
|---|
| GYC-02 | 11.29 | 2.03 | 4.35 | 2.03 | 4 |
|---|
| GYC-03 | 10.16 | 2.03 | 5.08 | 2.64 | 4 |
|---|
| GYC-04 | 4.24 | 0.91 | 2.24 | 1.22 | 4 |
|---|
| GYC-05 | 8.47 | 1.63 | 3.63 | 1.63 | 4 |
|---|
| GYC-06 | 6.35 | 1.22 | 2.82 | 1.22 | 4 |
|---|
| GYC-07 | 8.71 | 1.6 × 1.3 | 3.9 | 1.63 | 5 |
|---|
Different grade stainless steel properties
| Material | Maximum Wire Operating Temperature °C |
| Carbon Steel (40/45) | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum (3% Chrome) | 700 |
| 304 Stainless Steel (1.4301) | 750 |
| 321 Stainless Steel (1.4541) | 750 |
| 316 Stainless Steel (1.4401) | 800 |
| 316L Stainless Steel (1.4404) | 800 |
| 314 Stainless Steel (1.4841) | 1120 (Avoid use at 800-900°C) |
| 37/18 Nickel Chrome (1.4864) | 1120 |
| 80/20 Nickel Chrome (2.4869) | 1150 |
| Inconel 600 (2.4816) | 1150 |
| Inconel 601 (2.4851) | 1150 |
Compound weave conveyor belt
Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: What's the available stainless steel model?
A: We can produce by all available stainless steel models upon
customer requirements such as SUS201/202/304/310S/314/316L/430 etc.
We will also help choose the right model according to customer side
production requirement.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
Q: How do I make installation?
A: We will provide detailed instructions about installation process
and offer necessary suggestions based our exact working experience.
