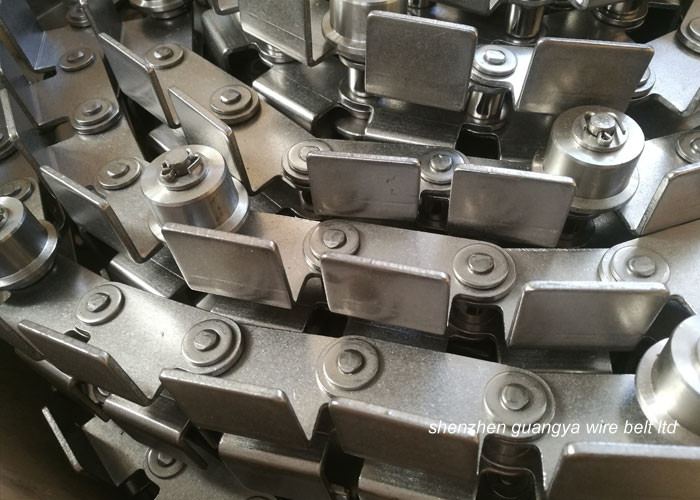

Manufacturing All Kinds Of Chain Plate Universal Weaves Of Metal
Wire Mesh Steel Conveyor Belt
Applications of Metal Wire Mesh Steel Conveyor Belt
The Universal Weave provides a smooth conveying surface and
excellent air circulation and liquid drainage. Universal weaves can
be used at temperatures of -40 Degrees F to 2100 Degrees F. Typical
applications include glazing ceramics, copper brazing steel parts
and cooking, baking and cleaning in the food processing industry.
Metal wire belt pecifications
| Material | SUS304/310/314, galvanized steel & other grade stainless steel wire
can be applied upon requests. |
| Standrad | DIN, JIS |
| Type | Metal wire belt |
| Mesh Size | minimum 5*8mm, max 35*50mm |
| Thickness | 1.0-10.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | mainly used in printing/cleaning/heating/baking machinery units. |
| Introduction | Stainless steel wire belt is made by spiral coil through a special
mold pressing, can be reinforced by rod and chain for high load
purpose. |
| Features | 1 Acid-resisting, alkali-resisting, high temperature resisting,
strong tension and good abrasion performance 2 It also has advantage of stable, fine and high precision
filtering performance. 3 Long service life |
1, food biscuits industries: mesh belt, mesh belt, cooling injection machine bending machine
mesh belt, chocolate coating machine b mesh belt. At the same time
production of biscuit machine, spray egg machine b net net belt
conveyer, and meat b, ultra-thin energy-saving mesh belt imported
machines.
2, instant noodles and rice industry; Steamed mesh belt, Fried box, drying box, comb wire cutting
knife, knife, knife, comb, fulcrum, molding box, etc.
3, all kinds of frozen food, dehydrated vegetables assembly line equipment with stainless
steel flat chain., chip removal chain, conveyor chain, mesh belt,
shaft, etc.
4, glass annealing LuWang, roast flowers LuWang, lose bottle machine mesh belt, Mosaic, mesh belt, specifications
have crankshaft, straight shaft, diamond-shaped, twin screw type.
5, manufacturing all kinds of chain plate turning machine, mesh belt conveyor and design and manufacture of metal mesh chain
belt. Is in the production of spring wire diameter range is 0.25-14
mm, compression spring, torsion spring, spring, tension spring,
butterfly spring, snake spring etc.
Our Advantage:
1. Our company can produce various specifications, models as per
requirement
2. High quality material with international standards with advanced
production technologies
3. Precise assembly to work with different enviroments
4. Have been powering hundreds famous clients in both China and
international clients
5. We have plenty of experience in dealing with different wire
belts production.
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
