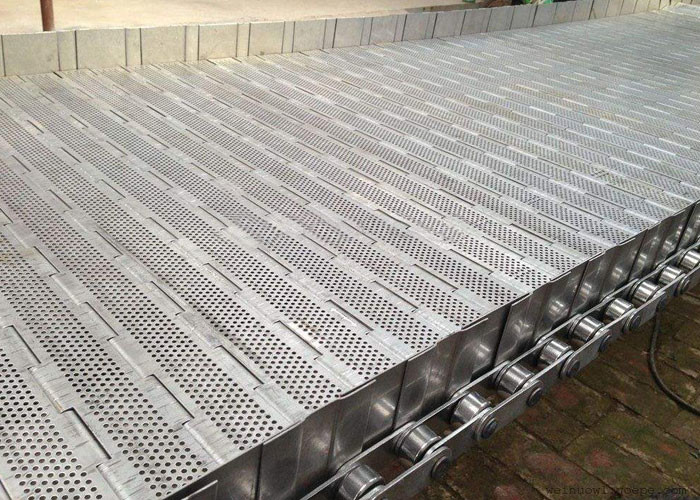

Manufacturer Stainless Steel Chain Wire Mesh Belt Conveyor
1.Brief Introduction
Manufacturer Stainless Steel Chain Wire Mesh Belt Conveyor is most commonly used wire mesh belt for conveyor. Conveyor belt is
used in many food processing applications and also in some
industrial range, such as in glass, ceramic and metal working. We
can customized as per the customer's request.
Stainless steel mesh belt conveyor aslo called stainless steel
conveyor, stainless steel mesh belt, stainless steel conveyors,
stainless steel belts, stainless steel Mobility with metal spiral
mesh belt, metal belt turn.
2. Manufacturer Stainless Steel Chain Wire Mesh Belt Conveyor benenfits:
1) Stainless steel mesh conveyor belt own the resistance to
acid,alkali and high temperature.
2) It owns good conveying function,break resistance as well as
antioxidation.
3) With professional design and compact form,the stainless steel
wire conveyor belt is very easy to install and steadily run without
deflection.
4) Resistant to high temperature of 600 degrees, are the best in
food machine and conveyor line conveyor
Our Product Parameter
| hain NO. | Pitch | Roller diameter | Inner width | Plate thickness | Plate depth | Pin Diameter | Pin length | Transvers pitch | Breaking load | Weight per meter |
|
|
| P | d1 | b1 | T | h2 | d2 | L | LC | Pt | Q | q |
| ANSI | ISO | mm | mm | mm | mm | mm | mm | mm | mm | mm | daN | kg/m |
| 40-2 | 08A-2 | 12.7 | 7.92 | 7.85 | 1.5 | 12 | 3.95 | 31 | 32.2 | 14.38 | 1920 | 1.2 |
| 50-2 | 10A-2 | 15.875 | 10.16 | 9.4 | 2 | 15 | 5.08 | 38.9 | 40.4 | 18.11 | 3040 | 2 |
| 60-2 | 12A-2 | 19.05 | 11.9 | 12.57 | 2.5 | 18 | 5.94 | 48.4 | 50.5 | 22.78 | 4340 | 3 |
| 80-2 | 16A-2 | 25.4 | 15.88 | 15.75 | 3 | 23 | 7.94 | 62.7 | 64.3 | 29.29 | 7780 | 5.2 |
| 100-2 | 20A-2 | 31.75 | 19.05 | 18.9 | 4 | 30 | 9.5 | 76.4 | 80.5 | 35.76 | 11800 | 7.6 |
| 120-2 | 24A-2 | 38.1 | 22.2 | 25.22 | 5 | 36 | 11.1 | 95.8 | 99.7 | 45.44 | 16000 | 11.2 |
| 140-2 | 28A-2 | 44.45 | 25.4 | 25.22 | 6 | 41.1 | 12.7 | 103.3 | 107.9 | 48.87 | 19600 | 15 |
| 160-2 | 32A-2 | 50.8 | 28.58 | 31.55 | 6 | 48 | 14.27 | 123.3 | 128.1 | 58.55 | 25000 | 20.2 |
Product Description :
Related Detailed Show :
Wire Conveyor Belt FAQ
1.Q:Are you manufacturer of or trader ?
A: we are direct factory who owns production lines and works ,
Everthing is felxbile and there is no need to worry about extra
charges by middle man or trader .
2.Q:where is your company located ?
A:we are located in Shenzhen city of Guangdong province , it is
about 1 hours trip from shenzhen interational airport .
3.Q:Which payment term ?
A :Generally our payment term is T/T 30% in advance .
4.Q:Can i get the free sample ?
A:If the sample is avaliable , can get in free , but if unavaliable
, need to customize , but the feight charge is by your side .
5.Q: How is your delivery time ?
A:We always prepare enough stock material for your urgernt
requirement , the delivery time is 7 days for all stock material ,
if we don't have stock , we will check with our production
department for the non-stock item to offer you exact delivery time
and production schedule .
