Flat wire belt , Stainless Steel Honeycomb Conveyor Belt
Flat wire mesh belt is also known as: horseshoe chain, plate mesh
belt, metal sheet mesh belt, towing belt.
Advantage of Stainless Steel Conveyor Belt
- mesh belt is composed of flat metal sheet and round metal wire,
- net belt light weight,
- mesh gap is large,
- mesh surface is flat It runs smoothly and does not go wrong.
Flat Belt For Baking Specification
- Material : Stainless steel wire,galvanized iron wire
- Weaving and characteristics : Conveyor belt can be into different
types,including chain link type belt mesh, balanced weave,
reinforced and other types offering different mesh opening and
features.
Application
It is widely used in automatic line transportation in light
industrial machinery, sterilization machine, silk printing and
dyeing, food, power generation, pharmaceutical, garment processing
and other industries.
Flat Conveyor Belt Feature
1. Stainless steel wire conveyor belt own the resistance to
acid,alkali and low high temperature.
2. It owns good conveying function,break resistance as well as
antioxidation.
3. With professional design and compact form,the stainless steel
wire conveyor belt is very easy to install and steadily run without
deflection.
4. Resistant to high temperature of 600 degrees, are the best in
food machine and conveyor line conveyor
Material
- A3 low carbon steel
- 45# steel
- 1Cr13 heat resistant steel,
- stainless steel,
- 304 stainless steel,
- 1Cr18Ni9Ti stainless steel,
- 0Cr25Ni20 0Cr18Ni14NO2CU2 heat resistant acid resistant steel, etc.
Technical Parameters
specification | Flat wire pitch | Rod pitch | Rod dia | Flat wire size | Weight(KG/M2) |
| FW-24-27.3-5-1.5×12.7 | 24 | 27.3 | 5 | 1.5×12.7 | 17.59 |
| FW-24-27.3-5-1.5×12.7 | 24 | 27.3 | 5 | 1.5×12.7 | 16.01 |
| FW-24-27.3-3-1.2×9.5 | 24 | 27.3 | 3 | 1.2×9.5 | 9.06 |
| FW-18-27.4-5-1.5×12.7 | 18 | 27.4 | 5 | 1.5×12.7 | 19.74 |
| FW-16-27.4-3-1.2×9.5 | 16 | 27.4 | 3 | 1.2×9.5 | 11.03 |
| FW-15-27-3-1.2×14.1 | 15 | 27 | 3 | 1.2×14.1 | 16.58 |
| FW-12.7-25.4-5-1.5×12.7 | 12.7 | 25.4 | 5 | 1.5×12.7 | 23.89 |
| FW-12.7-25.4-5-1.5×14.1 | 12.7 | 25.4 | 5 | 1.5×14.1 | 26.09 |
| FW-25.4-25.4-5-1.2×14.1 | 25.4 | 25.4 | 5 | 1.2×14.1 | 16.96 |
| FW-12.7-25.4-5-1.2×14.1 | 12.7 | 25.4 | 5 | 1.2×14.1 | 22.01 |
| FW-14-19.05-4-1.2×12 | 14 | 19.05 | 4 | 1.2×12 | 19.87 |
| FW-14-13.7-3-1.2×9.5 | 14 | 13.7 | 3 | 1.2×9.5 | 17.21
|

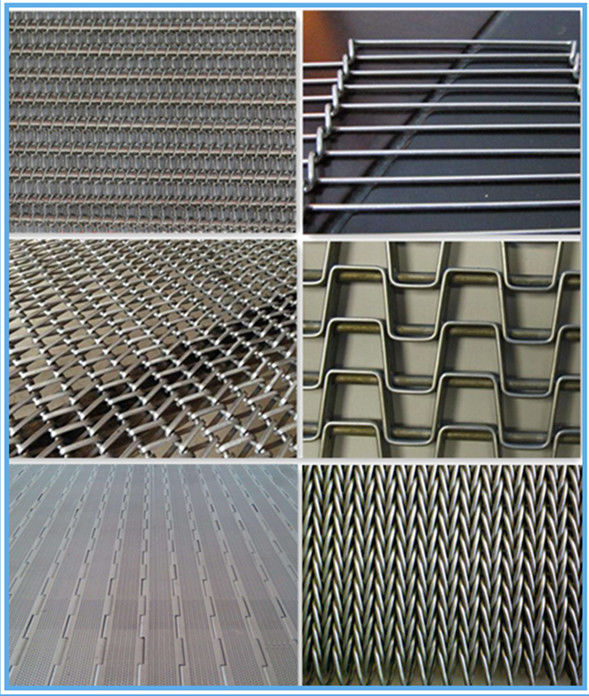

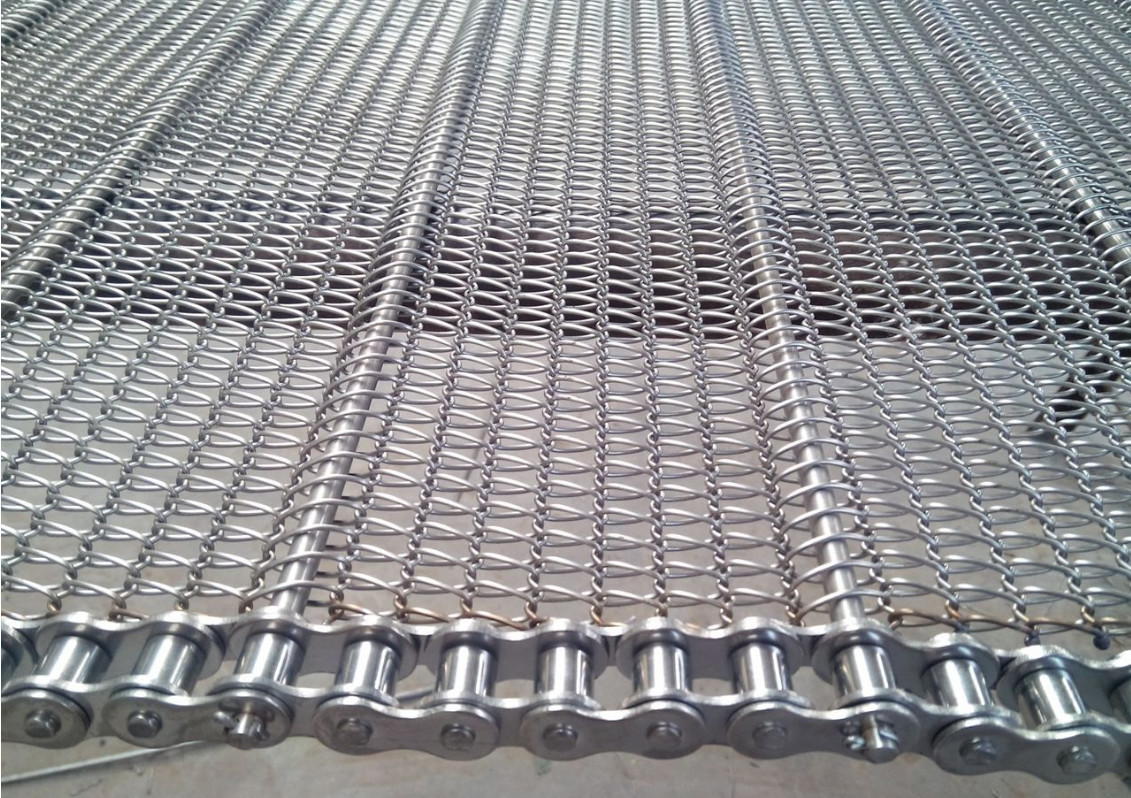

Products show:
Why Choose Us
1. Quick Production
We have a solid production team with over 12 years, each operator
has been working in this industry for more than 5 years. Plus, we
have more than 50 existing moulds to use directly.
2. Direct Manufacturer
We're direct manufacturer since 2003, we're also very close to sea
port & airport. We are the earliest manufacturer from south China.
3. Custom design
We have a professional engineering department for quick design upon
customer requirements.
4. Competitive price
We are running mass production model and have built up advanced
partnership with source material providers. We can save much cost
and provide very promotional offer to clients.
5. Best After-sale Service
We have professional after-sales service team, which consist of
five people, and each has more than three years experience. If you
have any questions after you receive the cargo, you can call us or
send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for
your trial to test if you have great intention to order
After -Sales Service
1. Experienced technicians guidance is available on the phone, and
on the internet.
2. One or more engineers will be dispatched to your country to help
install the customers’ plants.
3. Necessary training about machine daily maintenance to local
workers is provided also. 4.After-Sales department is made of
well-trained employees and installation engineers,
