Best Price Balance Spiral Metal Conveyor Mash Belts Surface Custom Design

Ask Lasest Price
Brand Name :	GuangYa
Model Number :	GY-M01
Certification :	ISO9001-2008
Price :	by design
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	3000 square meters per month
Delivery Time :	5-10 work days

Add to Cart

Product Details
Company Profile

Best Price Balance Spiral Metal Conveyor Mash Belts Surface Custom Design

1. Brief Introduction

Our company has more than 20 years experience , with high quality stainless steel raw material and advanced production technology,has established a long coopration relationship with many countries.Welcome to your join.

We’ve supplied over 500 customers in more than 100 industries worldwide. And we’re ready to serve you.Wire-Mesh Products carefully chooses and recommends the most cost-effective solution to satisfy our customers’ specific needs.

1) Material

Stainless steel welded wire mesh belt is usually used 201,304,316,316L,310,310S etc.

2) Types

Balance wire mesh belt, spiral link belt, wire link belt, chain driven conveyor belt, ey link conbeyor belt, honeycomb conbeyor belt.

2. Balance Spiral Metal Conveyor Mash Belts benenfits:

Has resistance to acid,alkali and low and high tempertures.
Has good convying function,break resistance as well as antioxidation.
With professional design and compact form,it is very easy to install steadily run without deflection.

3. Application of Balance Spiral Metal Conveyor Mash Belts For Roasting Food Stuff

Frozen food machinery
Canned food machinery
Marine food machinery
Powder metallurgy machinery
Continuous drying machine
Heat treatment machines
Glass machinery
Chemical machinery
General conveying machinery
Special conveying machinery

4.Stainless steel general properties table

Grade	Composition(%)						Temperature resisting	Specifications
Grade	C	Si	Mn	Ni	Cr	Mo	Temperature resisting	Specifications
1Cr13	≤0.15	≤0.6	≤0.6	-	12-14	-	650℃	Normal conveyor use
1Cr17	≤0.15	≤0.6	≤0.6	-	12-18	-	650℃	Normal conveyor use
304M	≤0.06	≤1.0	≤0.6	8.9-10	18-20	-	920℃	Normal conveyor use
304L	≤0.03	≤1.0	≤0.6	9-13	18-20	-	920℃	intercrystalline corrosion
316	≤0.08	≤1.0	≤0.6	10-14	16-18	2-3	920℃	Anti corrosion
316L	≤0.03	≤1.0	≤0.6	12-15	16-18	2-3	920℃	intercrystalline corrosion
309S	≤0.08	≤1.0	≤0.6	12-15	22-14	-	1000℃	Continuous high temperature
310s	≤0.08	≤1.5	≤0.6	19-22	24-26	-	1100℃	High temperature & heavy hit resisting
314	≤0.25	1.5-3.0	≤0.6	19-22	23-26	-	1200℃	Antioxidant plus all 310S
Cr20Ni80	≤0.15	0.4-1.3	≤0.6	72-78	20-23	-	1200℃	Antioxidant & high temperature resisting

Avdantage mesh conveyor belts :

width:150~5500mm speed:0.15~0.50m/min Temperature:-40°C~1050°C

Edage form: bay-side, duntou, weld etc.

1. Convenient and flexible use

2. Good transparency

3. Anti-high temperature and anti-corrosion

4. Steady performance.

5. Surface smooth, uniform through-hole

6. Standard chain drive, running smoothly, no deviation phenomenon

7. Load capacity and strong tensile

8. Easy to clean, easy to maintain

5. Why Us

1. Strict QC System
We have been engaged in production of shale shaker screen fore more than 15 years, we have strict quality control system and we have applied the patent of the screen, we can assure the best quality of every sheet of screen we produced.
2. Direct Manufacturer
We’re one direct manufacturer, which is very close to Tianjin Port. We are the earliest manufacturer of Shale Shaker Screen which is founded in 1989.
3. Short Production
Time We can complete production within 10 days and we usually prepare the material for every kind of our product. So we can deliver the goods as soon as possible.
4. In Return
When your annual purchase amount is over 10000 sheet, we’ll give you 2%-3% of the amount in return.
5. Best After-sale Service
We have professional after-sales service team, which consist of five people, and each has more than three years experience. If you have any questions after you receive the cargo, you can call us or send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for your trial to test if you have great intention to order

6.Product Display:

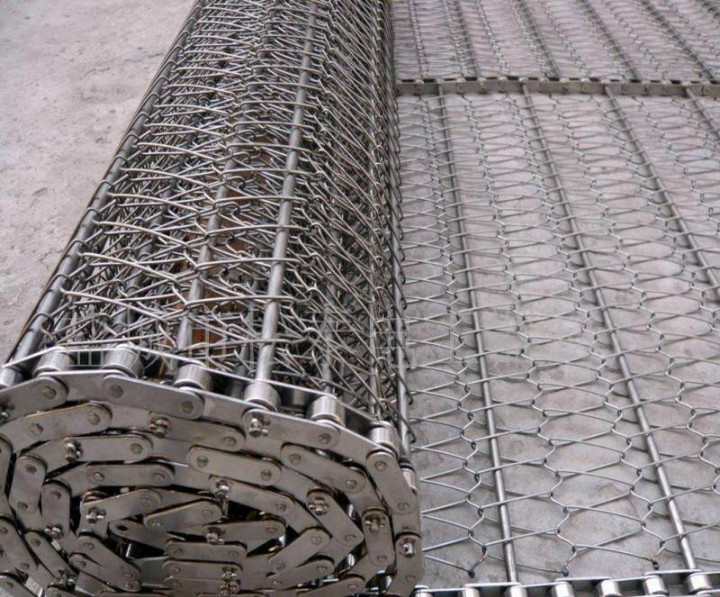

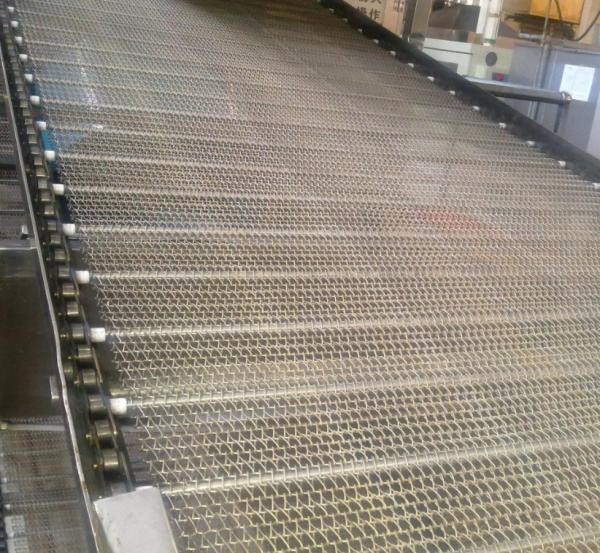

Best Price Balance Spiral Metal Conveyor Mash Belts Surface Custom Design
