Factory Promotion Price Good Ventilation And Dehydration Chain-type
Mesh Belt

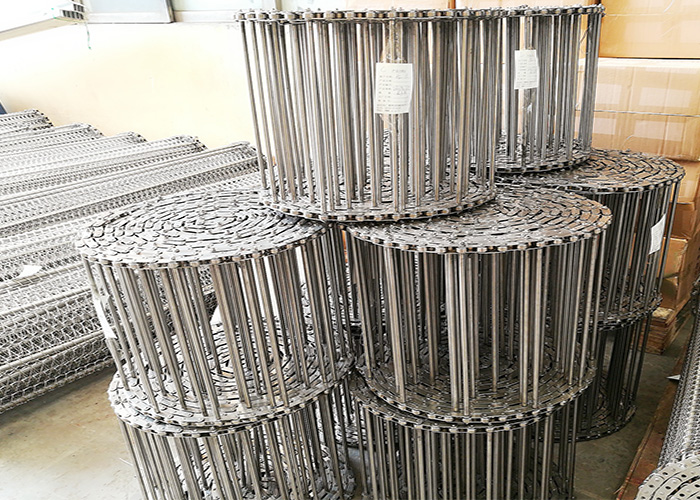

Chain-type mesh belt is also called cross-bar mesh belt, spur mesh
belt, fulcrum chain, etc. The difference between the chain-type
mesh belt and the ordinary metal mesh belt is that the metal mesh
belt is reduced, which is suitable for shape rules and volume.
Large products, such as trays, cartons, woven bags, food baskets,
etc. The support rods of the chain-type mesh belt can be adjusted
and customized, and can be applied to the transportation of objects
of different sizes.
1) Material
Stainless steel welded wire mesh belt is usually used
201,304,316,316L,310,310S etc.
2) Types
The stainless steel chain-type mesh belt has the following forms:
horizontal straight conveying, lifting climbing transportation,
turning conveying, etc., and accessories such as lifting baffles
and side baffles can be added on the conveyor belt to meet various
technical requirements.
2. Chain-type mesh belt benenfits:
- Has resistance to acid,alkali and low and high tempertures.
- Has good convying function,break resistance as well as
antioxidation.
- With professional design and compact form,it is very easy to
install steadily run without deflection.
3.Stainless steel general properties table
| Grade | Composition(%) | Temperature resisting | Specifications |
| C | Si | Mn | Ni | Cr | Mo |
| 1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
| 1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | Normal conveyor use |
| 304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
| 304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
| 316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
| 316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
| 309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
| 314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
| Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |
4.Advantages of the chain-type mesh belt
Simple structure
flat surface
Uniform through hole
Standard chain drive
Smooth running
No deviation
Heavy load capacity and tensile strength
Wear-resistant, durable,
long lasting
Good air permeability
low cost
Energy saving
easy to use
Easy to clean
Easy maintenance, etc.
5. Why us
1. Strict QC System
We have been engaged in production of shale shaker screen fore more
than 15 years, we have strict quality control system and we have
applied the patent of the screen, we can assure the best quality of
every sheet of screen we produced.
2. Direct Manufacturer
We’re one direct manufacturer, which is very close to Tianjin Port.
We are the earliest manufacturer of Shale Shaker Screen which is
founded in 1989.
3. Short Production
Time We can complete production within 10 days and we usually
prepare the material for every kind of our product. So we can
deliver the goods as soon as possible.
4. In Return
When your annual purchase amount is over 10000 sheet, we’ll give
you 2%-3% of the amount in return.
5. Best After-sale Service
We have professional after-sales service team, which consist of
five people, and each has more than three years experience. If you
have any questions after you receive the cargo, you can call us or
send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for
your trial to test if you have great intention to order
