    Chocolate Baking Flat Flex Stainless Steel Wire Mesh Conveyor Belt Air Permeability

    Ask Lasest Price
    Brand Name : GuangYa
    Model Number : GY-YI01
    Certification : ISO9001-2008
    Price : $ 15-65/Meter
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000 Square Meter Per Month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Chocolate Baking Flat Flex Stainless Steel Wire Mesh Conveyor Belt Air Permeability

    Good Air Permeability Chocolate Baking Metal Conveyor Flat Flex Belt

    Flat flex mesh belt is also known as: horseshoe chain, plate mesh belt, metal sheet mesh belt, towing belt.


    The proven conveyor belt technology

    Flat-Flex belts have over 85 years of trusted performance in the industry. With up to 86% open surface area, Flat-Flex belts promote maximum flow through and are the proven solution for major processors. Flat-Flex®USDA approved design and clean in place capability make it even easier to keep your line hygienic, and with many wire diameters and pitches to choose from, you'll be able to find the right belt for your product.


    The unique features of Flat-Flex conveyor belts offer numerous benefits that increase productivity, help contain costs and improve your overall product quality, including:

    • Large open area - up to 86%
    • Small transfers
    • Non-slip positive drive
    • Very low belt mass for improved operating efficiency
    • Accurate tracking
    • Hygienic design, Easy to clean, clean-in-place capability
    • USDA approved
    • C-CureEdge™ available on a range of selected specifications

    Flat Flex Belt For Baking Specification

    1. Material : Stainless steel wire,galvanized iron wire
    2. Weaving and characteristics : Conveyor belt can be into different types,including chain link type belt mesh, balanced weave, reinforced and other types offering different mesh opening and features.

    Flat Flex Belt Application

    • Transport
    • Cooking
    • Heating
    • Drying
    • Cooling
    • Coating
    • Drainage
    • Freezing
    • Enrobing
    • Frying
    • Baking
    • Dough Rolling
    • Battering
    • Breading
    • Shrink Wrapping
    • Sterilisation
    • Soldering
    • Architectural Mesh
    • Shuttling
    • Turning
    • Side Shifting
    • Collating
    • Crumbing
    • Searing
    • Glazing
    • Preparation
    • Sieving

    Material

    1. A3 low carbon steel
    2. 45# steel
    3. 1Cr13 heat resistant steel,
    4. stainless steel,
    5. 304 stainless steel,
    6. 1Cr18Ni9Ti stainless steel,
    7. 0Cr25Ni20 0Cr18Ni14NO2CU2 heat resistant acid resistant steel, etc.

    Standard Belt Data

    Flat-Flex is available in a wide range of wire diameters & pitches. The following table gives a broad indication of availability:

    Wire Dia. RangePitch Range
    0.9mm - 1.27mm4.0mm - 12.7mm
    1.4mm – 1.6mm5.5mm – 15.0mm
    1.8mm – 2.8mm8.0mm – 20.32mm
    3.4mm – 4.0mm19.05mm – 25.0mm

    Note: Due to pitch to wire dia. combination ratios not all pitches are available in the corresponding wire diameters stated.


    The below data is an extract from our full range of Flat-Flex belting.

    Pitch and Wire Diameter (mm)Average weight (kg/m²)Max belt tension per space (N)Minimum transfer roller outside diameter (mm)Minimum recommended reverse bend diameter (mm)*Typical open area (%)Edge Availability
    Single Loop Edge (SLE)Double Loop Edge (DLE)C-Cure Edge (SLE CC)
    4.24 x 0.901.313.4124377
    4.30 x 1.272.644.5124367
    5.5 x 1.01.3519.6125579
    5.5 x 1.272.244.5125573
    5.6 x 1.01.3319.6125679.5
    5.64 x 0.901.013.4125782
    6.0 x 1.271.944.5166076
    6.35 x 1.272.044.5166477
    6.40 x 1.402.755206476
    7.26 x 1.271.644.5167380
    7.26 x 1.602.566.7197375
    9.60 x 2.083.597.8259675
    12.0 x 1.832.380.02912081
    12.7 x 1.832.280.02912782
    12.7 x 2.353.6133.43812778
    12.7 x 2.85.1191.33812772
    20.32 x 2.352.6133.43820385

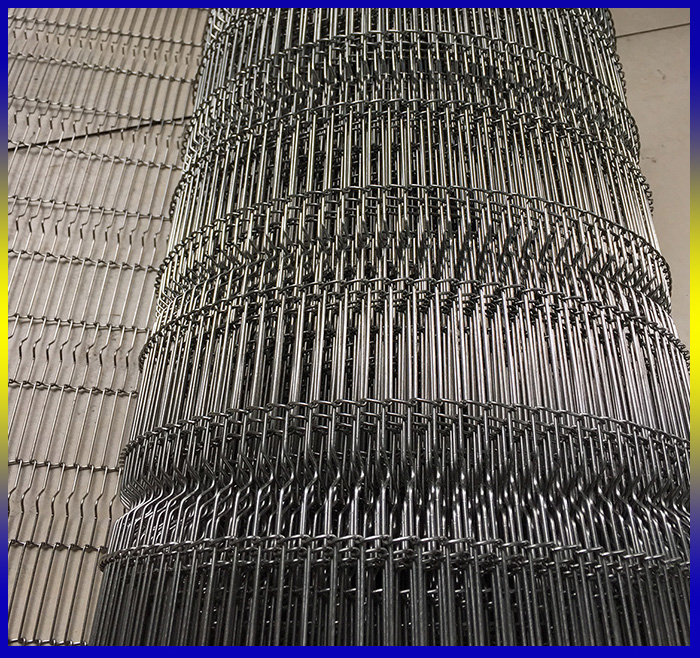

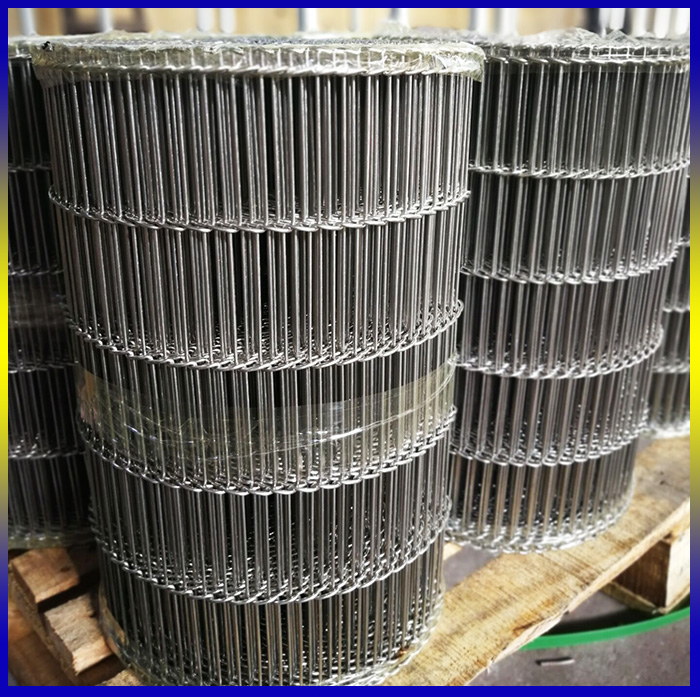

    Products show:


    Why Choose Us

    1. Quick Production
    We have a solid production team with over 12 years, each operator has been working in this industry for more than 5 years. Plus, we have more than 50 existing moulds to use directly.


    2. Direct Manufacturer
    We're direct manufacturer since 2003, we're also very close to sea port & airport. We are the earliest manufacturer from south China.


    3. Custom design
    We have a professional engineering department for quick design upon customer requirements.


    4. Competitive price
    We are running mass production model and have built up advanced partnership with source material providers. We can save much cost and provide very promotional offer to clients.


    5. Best After-sale Service
    We have professional after-sales service team, which consist of five people, and each has more than three years experience. If you have any questions after you receive the cargo, you can call us or send email all day.


    6. Supply free samples
    As we have above advantages, we can supply you free samples for your trial to test if you have great intention to order



    After -Sales Service

    1. Experienced technicians guidance is available on the phone, and on the internet.

    2. One or more engineers will be dispatched to your country to help install the customers’ plants.

    3. Necessary training about machine daily maintenance to local workers is provided also. 4.After-Sales department is made of well-trained employees and installation engineers,
