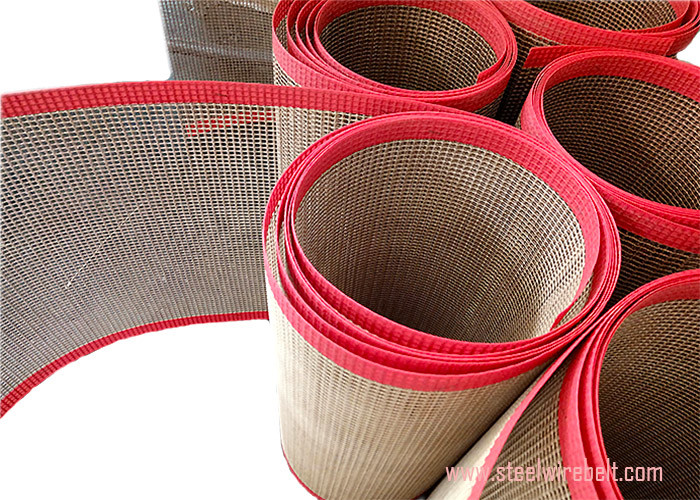

Top Quality Good Tensile Strength Non-Toxic PTFE Wire Mesh Conveyor
Belt
mesh conveyor belt is suspended PTFE ( commonly known as the king
of plastic) emulsion as raw material, impregnated fiberglass mesh
is made of high-performance , is a high performance ,
multi-composite materials and new products. Because of its
excellent performance, it is widely used in papermaking, food,
environmental, printing and dyeing, clothing, chemicals, glass,
pharmaceuticals , electronics, insulation, wheel slice , machinery
and other fields.
For our company wire mesh , in addition to its excellent release,
abrasion resistance, low friction coefficient and corrosion
resistance, the conveyor belt can maintain the original physical
shape and deform at -170 ~+260 C temperature. In addition, due to
its non-toxic, odorless and tasteless characteristics, it has been
approved by FDA in the United States, and is widely used in food
processing, packaging and other treatment fields.
Welcome your Consultation immediately.
Non-Toxic PTFE Wire Mesh Conveyor Belt Feature
1. Non adhesion
Difficult to adhere to any substance. Easy to clean; attach various
attachments to its surface; almost all adhesive substances can be
simply removed.
2. Temperature resistance -170 degrees C - 300 degrees C, long life
250 degrees of high temperature, continuous placed for 200 days,
the intensity remained low, weight is not reduced; 300 degrees high
temperature placed 120 hours, the weight is only about 0.6%; -180
degrees Celsius at ultra low temperature will not crack, the
original softness unchanged.
3. Fire retardant, odorless, non-toxic
impregnated into non-toxic, food grade
4. Dimensional stability without deviation
Corrosion resistant to acid, alkali, aqua regia and various organic
solvents, resistant to almost all pharmaceutical items.
5. Dimensional stability without deviation
High strength, good mechanical properties, low coefficient of
friction (0.05-1), no lubrication required.
6. Wide range of use, reduce heat loss
Mesh structure, permeability, reduce heat consumption and improve
drying efficiency. Anti bending fatigue, can be used for smaller
wheel diameter.
| aterial | SUS304/316/310, galvanized steel & other grade stainless steel wire
can be applied upon requests. |
| Standrad | DIN, JIS |
| Type | Metal wire belt |
| Mesh Size | minimum 5*8mm, max 35*50mm |
| Thickness | 1.0-10.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | mainly used in printing/cleaning/heating/baking machinery units. |
| Introduction | Stainless steel wire belt is made by spiral coil through a special
mold pressing, can be reinforced by rod and chain for high load
purpose. |
| Features | 1 Acid-resisting, alkali-resisting, high temperature resisting,
strong tension and good abrasion performance 2 It also has advantage of stable, fine and high precision
filtering performance. 3 Long service life |
Stainless Steel Chain Conveyor Design Type
Product Show:
Conveyor Belt FAQ
Q: Are you a factory or a manufacturer?
A: we are manufacturer, and we have 20 years experience in this
business..
Q: Can you supply samples, is it free?
A:most of our products has stock, so we can supply samples for free,
but you should pay for the transfer charge. and some products need
customized which have the MOQ that we cannot supply the sample..
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
