Hot Sale Stainless Steel Plate Chain Conveyor Chain Plate Conveyor
product description:

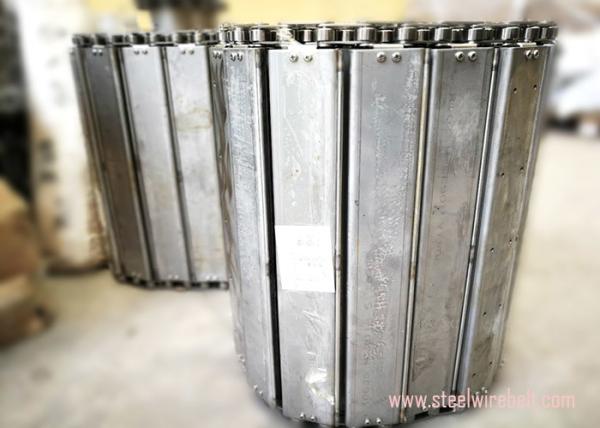

Plate chain conveyor belt is light weight but very strong design
which is made of stainless steel plate. The belt is reinforced by
rod and stainless steel conveyor chain for corrosion, rust and
temperature resistance under different working conditions. Plate
chain conveyor belt is combined with plate and chain link edges.
The perforated plate bending to form hinges. The hinges are
connected by the cross rods. And then the cross rods are fixed onto
the chain link edges to form a solid and durable structure.
Comparing to any other stainless steel belt solution, link plate
belt is very outstanding for its extremely smooth surface and light
weight structure!
Plate chain conveyor belt is widely used in the electronic, solar energy, electrical
appliances, food, medicine, hardware, machinery, large-scale
distribution center, tobacco, automobile and auto parts industries.
| Material | stainless steel & carbon stee |
| Standrad | DIN, JIS |
| Belt ype | Food conveyor belt |
| Link plate type | with or without holes |
| Thickness | 1.5-2.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | can be used in almost every conveyor solution |
| Introduction | link plate conveyor belt is light weight but high load resisting
belt solution |
| Features | Acid-resisting, alkali-resisting, high temperature resisting,
strong tension and good abrasion performance It also has advantage of stable, fine and high precision filtering
performance. Long service life |
| Grade | Composition(%) | Temperature resisting | Specifications |
| C | Si | Mn | Ni | Cr | Mo |
| 1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
| 1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | Normal conveyor use |
| 304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
| 304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
| 316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
| 316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
| 309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
| 314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
| Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |
Link plate conveyor belt Application
- Cleaning, conveying machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf
machine pretreatment mesh belt, chain network.
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
