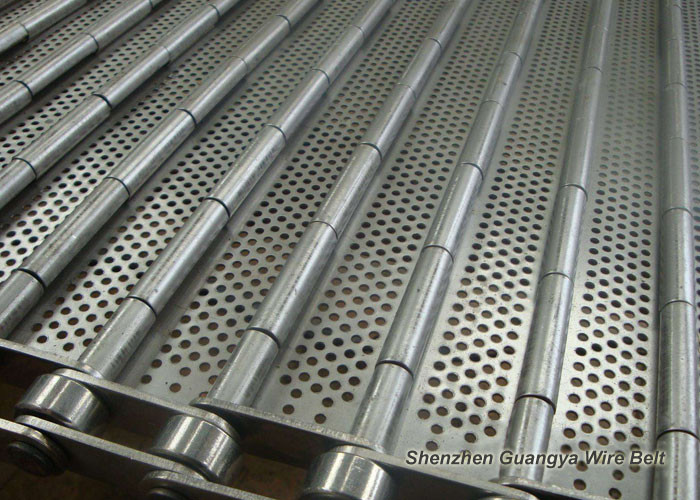

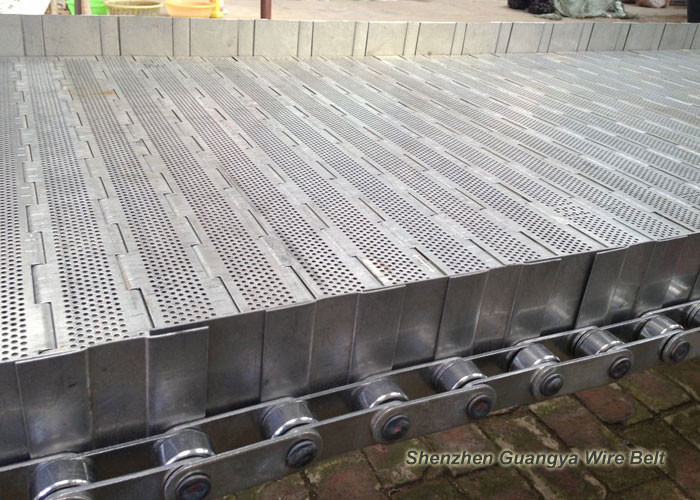

Chain Driven Conveyor Plate Link Belt Metal Wire Belt High
Temperature Resistant
Keywords: link plate belt,link plate conveyor belt,chain conveyor belt,SS
drive plate belt.Straight Running Belts
GuangYa metal mesh products factory was founded in 1999, our
factory address is located in known as "China's Manufacturing
Center" reputation of Shenzhen, is set drawing, weaving, wire mesh
processing, research and development of new products and workers
Trade integration of large-scale comprehensive enterprise and
production and sales of various metal mesh and metal decorative
network of professional manufacturers.
Features:
- Positive Stainless Steel wire mesh belt ensures stable running.
- The rotation diameter of stainless steel conveyor wire mesh belt is
small, so that smooth products transfer is ensured.
- This kind of conveyor wire mesh belt can be washed easily.
- The opening air of mesh belt, high air permeablity and hydration
are ensured.
- Reinforcement plate links are made for heavy load and high speed
After -Sales Service
- Experienced technicians guidance is available on the phone, and on
the internet.
- One or more engineers will be dispatched to your country to help
install the customers’ plants.
- Necessary training about machine daily maintenance to local workers
is provided also.
- 4.After-Sales department is made of well-trained employees and
installation engineers,
- the installation engineers are special and professional members ,
they are now strategically located home and abroad, working for our
customers.
Material:
SUS302,304,304L, 316,316L, 310s / stainless steel wire, stainless
steel plate
Our Advantage:
- Our company can produce various specifications, models as per
requirement
- High quality material with international standards with advanced
production technologies
- Precise assembly to work with different enviroments
- Have been powering hundreds famous clients in both China and
international clients
- We have plenty of experience in dealing with different wire belts
production.
Plate link conveyor belt properties
| Item | Pitch(mm) | Rod diameter(mm) | Plate thickness(mm) |
|---|
| GYL-01 | 25.40 | 5.00 | 1.00 |
| GYL-02 | 25.40 | 6.00 | 1.00 |
| GYL-03 | 25.40 | 6.00 | 1.50 |
| GYL-04 | 31.75 | 6.00 | 1.00 |
| GYL-05 | 31.75 | 6.00 | 1.50 |
| GYL-06 | 31.75 | 8.00 | 2.00 |
| GYL-07 | 38.10 | 6.00 | 1.00 |
| GYL-08 | 38.10 | 6.00 | 1.50 |
| GYL-09 | 38.10 | 8.00 | 1.00 |
| GYL-10 | 38.10 | 8.00 | 1.50 |
| GYL-11 | 38.10 | 8.00 | 2.00 |
| GYL-12 | 50.80 | 8.00 | 1.00 |
| GYL-13 | 50.80 | 8.00 | 1.50 |
| GYL-14 | 50.80 | 10.00 | 2.00 |
| GYL-15 | 50.80 | 10.00 | 3.00 |
| GYL-16 | 63.50 | 10.00 | 1.50 |
| GYL-17 | 63.50 | 10.00 | 2.00 |
| GYL-18 | 63.50 | 10.00 | 3.00 |
| GYL-19 | 80.00 | 8.00 | 1.50 |
| GYL-20 | 80.00 | 8.00 | 2.00 |
| GYL-21 | 80.00 | 10.00 | 2.00 |
| GYL-22 | 80.00 | 10.00 | 2.50 |
| GYL-23 | 100.00 | 10.00 | 1.50 |
| GYL-24 | 100.00 | 10.00 | 2.00 |
| GYL-25 | 100.00 | 10.00 | 2.00 |
| GYL-26 | 100.00 | 14.00 | 2.00 |
| GYL-27 | 100.00 | 14.00 | 3.00 |
| GYL-28 | 101.60 | 10.00 | 4.00 |
| GYL-29 | 101.60 | 14.00 | 4.00 |
| GYL-30 | 125.00 | 20.00 | 3.00 |
Compatible sprocket properties
| Edge Chain Type | Belt Style | Chain Pitch (mm) | Number of Teeth |
| 8 | 10 | 12 |
1361 kgf loose link & roller chain
(25.4mm chain roller diameter) | Light & Medium Duty Plate Link Belt | 38.1 | 99.57 | ᶲ | 147.22 |
| 50.8 | 132.74 | ᶲ | 196.27 |
| 76.2 | 199.11 | ᶲ | 294.41 |
| 101.6 | 265.51 | ᶲ | 392.56 |
| 152.4ᶲ | 398.25 | ᶲ | 588.82 |
2042 kgf standard conveyor chain
(25.4mm chain roller diameter) | Light Duty
Plate Link Belt | 38.1 | 99.57 | ᶲ | 147.22 |
| 50.8 | 132.74 | ᶲ | 196.27 |
| 76.2 | 199.11 | ᶲ | 294.41 |
2722 kgf standard conveyor chain
(31.75mm chain roller diameter) | Medium Duty
Plate Link Belt | 50.8 | 132.74 | ᶲ | 196.27 |
| 76.2 | 199.11 | 246.58 | 294.41 |
| 101.6 | 265.51 | 328.78 | 392.56 |
| 152.4 | 398.25 | ᶲ | 588.82 |
conveyor belt Application
- Cleaning, conveying machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf
machine pretreatment mesh belt, chain network.
Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
