Manufacturers Supply Chain Belt / Stainless Steel Mesh Belt /
Stainless Steel Conveyor Belt
Shenzhen GuangYa Conveyor Belts Co., Ltd. specializing in the
production of network, metal mesh belt, chain plate, chain,
transport machinery and equipment. Since the construction of more
than 10 years in the country to support the majority of users, the
product marketing more than 1,000 users. In the glass products and
food and other industries, enjoy a high reputation, welcomed by the
majority of users
the spirals and chain rod specifications can be fully custom
produced based production requirements.

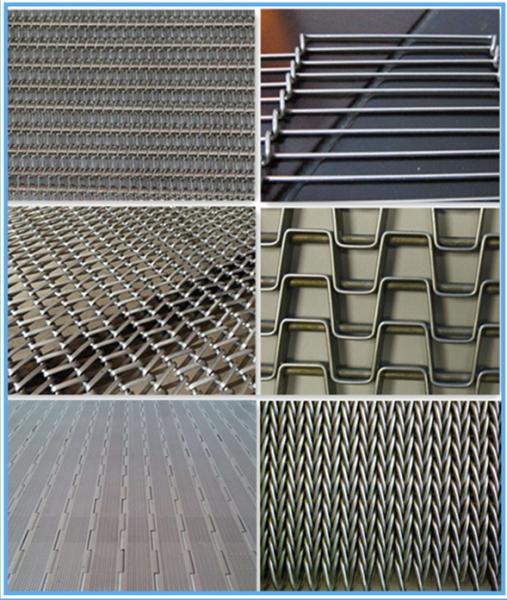

Mesh belt mainly includes: all kinds of conveyor belt, metal mesh belt, stainless steel mesh
belt, high temperature mesh belt, wave string net belt, B-type mesh
belt, great Wall mesh belt, horseshoe chain, special-shaped mesh
belt, , flat wire mesh belt, square hole mesh belt, word type
transmission belt, spiral mesh belt, bar chain conveyor belt,
drying equipment mesh belt etc .
Chain plate size: straight conveyor chain plate width from
63.5,82.5,101.6,114.3,152.4,190.5,254,304.8; turn chain plate width
of 82.5,114.3,152.4,190.5,304.8
Chain drive wire conveyor belt properties
| Specification | Belt Thickness
(mm) | Coil Pitch(mm) | Coil Dia. (mm) | Coil length (mm) | Cross Wire Dia (mm) |
| 18-16-16-16 | 7.7 | 16.94 | 1.63 | 19.05 | 1.63 |
| 18-14-16-14 | 8.9 | 16.94 | 2.03 | 19.05 | 2.03 |
| 30-17-24-17 | 7.3 | 10.16 | 1.42 | 12.7 | 1.42 |
| 30-16-24-16 | 6.7 | 10.16 | 1.63 | 12.7 | 1.63 |
| 42-18-36-18 | 6.0 | 7.26 | 1.22 | 8.47 | 1.22 |
| 42-17-36-17 | 6.0 | 7.26 | 1.42 | 8.47 | 1.42 |
| 42-16-36-16 | 6.4 | 7.26 | 1.63 | 8.47 | 1.63 |
| 48-17-48-17 | 6.1 | 6.35 | 1.42 | 6.35 | 1.42 |
| 48-16-48-16 | 6.4 | 6.35 | 1.63 | 6.35 | 1.63 |
| 60-20-48-18 | 4.0 | 5.08 | 0.91 | 6.35 | 1.22 |
| 60-18-48-18 | 5.2 | 5.08 | 1.22 | 6.35 | 1.22 |
| 60-18-60-18 | 5.6 | 5.08 | 1.22 | 5.08 | 1.22 |
Chain drive wire conveyor belt Application
- Heating, baking machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf
machine pretreatment mesh belt, chain network.
Different grade stainless steel properties
| Material | Maximum Wire Operating Temperature °C |
| Carbon Steel (40/45) | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum (3% Chrome) | 700 |
| 304 Stainless Steel (1.4301) | 750 |
| 321 Stainless Steel (1.4541) | 750 |
| 316 Stainless Steel (1.4401) | 800 |
| 316L Stainless Steel (1.4404) | 800 |
| 314 Stainless Steel (1.4841) | 1120 (Avoid use at 800-900°C) |
| 37/18 Nickel Chrome (1.4864) | 1120 |
| 80/20 Nickel Chrome (2.4869) | 1150 |
| Inconel 600 (2.4816) | 1150 |
| Inconel 601 (2.4851) | 1150 |
Chain drive wire conveyor belt
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: What's the available stainless steel model?
A: We can produce by all available stainless steel models upon
customer requirements such as SUS201/202/304/310S/314/316L/430 etc.
We will also help choose the right model according to customer side
production requirement.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
Q: How do I make installation?
A: We will provide detailed instructions about installation process
and offer necessary suggestions based our exact working experience.
