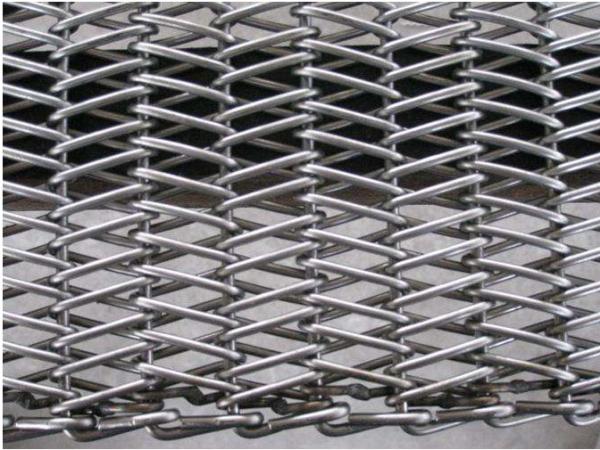

Chain Conveyor Mesh Wire Belt Metal Hot Treatment , Dryer Equipment
Our company main products are: all kinds of metal conveyor belt,
stainless steel decorative curtains, B mesh, square wire mesh,
vapor-liquid filter, steel mesh, punching network, screen demister,
shaker and so on.
Features: mesh surface formation, high hardness, not easy to deformation,
durable, the highest temperature above 1200 ℃.
Application: petrochemical, chemical fiber, electronic industry, color picture
tube, building materials, food machinery, powder metallurgy, heat
treatment, glass fiber, glass, cleaning electric furnace, reflow,
sintering furnace and other industrial lines.
Welcome for your consultation message any time , best service for
you
Our company address :Shenzhen Guangming new disctrict , Gongming town ,Loucun new
village ,Lido road 73#
Contact Person :Yedda
Tel./Whatsapp :+8613530018648
Mesh conveyor belt general properties table
| MESH BELT |
| Spcification | Customerization according customer requirement |
| Advantage | To prevent the workpiece rolled out mesh belt edge |
| Can put a small wokrpiece on the mesh belt directly , don't need
the workpiece tray |
| Workpieces | Light and weight wokrpieces , and others |
| Apply the furnace type | Muffle mesh belt heat treatment line , continuous annealing
furnace , continuous tempering furnace,Continuous aging furnace,
conveyor belt heat treatment furnace, and so on . |
|
Working
Temperature | Working temperature | Material |
| Below 650°C | 304 |
| Below 800°C | 321 |
| Below 800°C | 316L(Corrosion prevention) |
| Below 1100°C | 310S |
| Below 1200°C | 314
|
General specifications
- open mesh construction for quick drainage and free air circulation
- a smooth, flat surface
- sanitary-easily clean
- replacement available of damaged sections
- endless splicing
- high strength to weight ratio
- positive sprocket drive
Different grade stainless steel properties
| Material | Maximum Wire Operating Temperature °C |
| Carbon Steel (40/45) | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum (3% Chrome) | 700 |
| 304 Stainless Steel (1.4301) | 750 |
| 321 Stainless Steel (1.4541) | 750 |
| 316 Stainless Steel (1.4401) | 800 |
| 316L Stainless Steel (1.4404) | 800 |
| 314 Stainless Steel (1.4841) | 1120 (Avoid use at 800-900°C) |
| 37/18 Nickel Chrome (1.4864) | 1120 |
| 80/20 Nickel Chrome (2.4869) | 1150 |
| Inconel 600 (2.4816) | 1150 |
| Inconel 601 (2.4851) | 1150 |
Why Choose Us
1. Quick Production
We have a solid production team with over 12 years, each operator
has been working in this industry for more than 5 years. Plus, we
have more than 50 existing moulds to use directly.
2. Direct Manufacturer
We're direct manufacturer since 2003, we're also very close to sea
port & airport. We are the earliest manufacturer from south China.
3. Custom design
We have a professional engineering department for quick design upon
customer requirements.
4. Competitive price
We are running mass production model and have built up advanced
partnership with source material providers. We can save much cost
and provide very promotional offer to clients.
5. Best After-sale Service
We have professional after-sales service team, which consist of
five people, and each has more than three years experience. If you
have any questions after you receive the cargo, you can call us or
send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for
your trial to test if you have great intention to order
