Heavy Duty Flat Flex Conveyor Belt, Eye Flex Conveyor Bel, Eye Shape Heat Resistan For Cooling

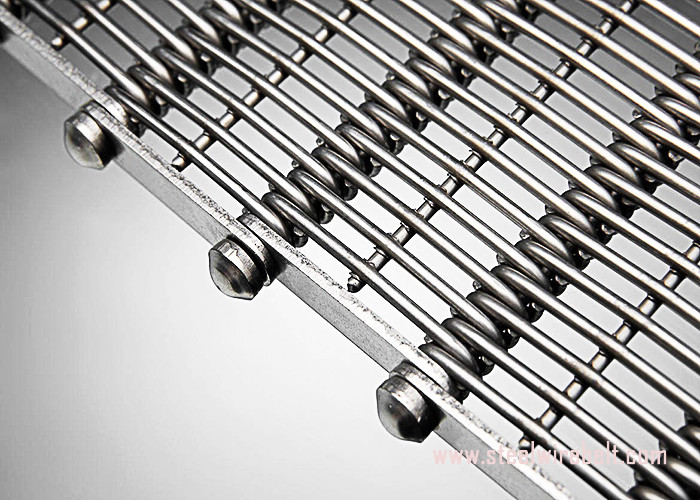

Eye flex conveyor belt is high strength, robustness and open design with flat carrying surface to meet with your heavy duty conveyor belt requirements. It is specially designed to conveying large and heavy products. It has large open area and rugged structure, which can ensure the long service life of eye flex convey belt.Materials of eye flex conveyor belt are commonly stainless steel, high carbon steel and galvanized steel. They all have excellent corrosion and rust resistance performance, also they are high temperature resistance, which can be used in the high temperature applications.We supply high quality flat flex conveyor belt with custom design support. The eye shape strips can be round wires or flat sheet. The round wire eye flex conveyor belt is the most common type and the flat sheet eye flex conveyor belt can be used to suit the special applications of customers.

Eye flex conveyor belt series:

1. Standard type eye flex conveyor belt. Standard type eye flex conveyor belt is the simplest type. There is not any spacers or welded wires on the standard type eye flex conveyor belt. This structure make it have large open area and excellent flow-through performance. Additional, the standard type eye flex conveyor belt is the most economical type, which can save cost for customers.

2. Conveyor belt with under welded wire spacing. Welded wires added onto the conveyor belt make the belt have high load capacity to load heavy products. It supplies the largest range of gap width.

3. Conveyor belt with rings as spacers. Rings are added onto spacers increase the belt gap. The gap width is determined by the number and wire diameter of rings. This structure make the belt have better air circulation

4. Conveyor belt with springs as spacers. This type of conveyor belt has the widest gap width, which has best air circulation performance. It supplies a more stable structure, which make the eye-link wires be able to move on the cross rods.

Eye flex conveyor belt properties

Shenzhen guangya wire belt co was founded in 2005 for production of stainless steel wire conveyor belt, plate belt, stainless steel roller chain, belt and machinery transmission components. Being ISO and SGS certified company, we're well recognized for high quality and one stop purchase solution. Our products are widely used in medcine, chemical, printing and coating machinery industries. We have built up long term partnership with clients in both domestic and oversea countries for reliable quality products.
