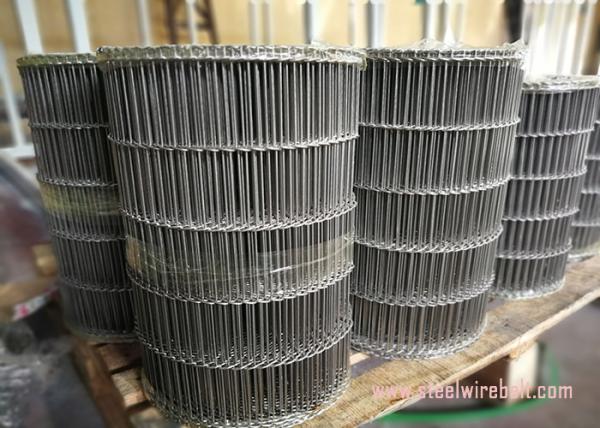

Flat Flex Wire Mesh Belt , Stainless Steel Flat Wire Conveyor Belt
Our flat flex conveyor belt can be fully custom produced upon
customer side specific
requirement and different machinery application such as cleaning,

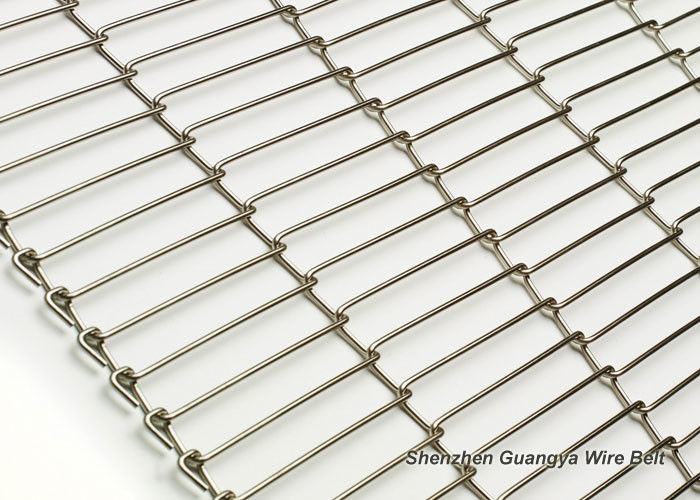

baking and freezing etc. Flat flex conveyor belt is constructed by
several loop wires and then be formed different edge. The simple
structure make it economical and lightweight. It can help to save
cost and reduce downtime.
The standard flat flex conveyor belt is flat and without any convex
or concave surface. The standard flat flex conveyor belt is
suitable for almost all the applications. Except for the standard
flat flex conveyor belt, there are two other types of flat flex
conveyor belt. They can be used in different applications for
fixing and sorting. You can refer to them and decide if it suit for
you.
Materials
First class stainless steel wire in SUS201, 202, 302, 304, 316,
304L, 310, 310S , 316L, 321, etc. Any other material as your
requirement.
- Large open area - up to 86%
- Small transfers
- Non-slip positive drive
- Very low belt mass for improved operating efficiency
- Accurate tracking
- Hygienic design, Easy to clean, clean-in-place capability
Technical details
- Materials: quality spring steel AISI 1060; stainless steel wire
302, K2930. Other materials can be customized.
- Open area: 67.5% to 86%.
- Wire diameter: 0.9mm - 2.35mm. Special specs are available.
- Pitch: 4.24mm - 20.32mm. Other pitches can be customized.
- Belt width: 3" to 14' or custom width as your request.
Flat flex wire mesh conveyor belt Application
- Heating, baking machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf
machine pretreatment mesh belt, chain network.
Flat flex conveyor belt properties
| Item | Wire diameter
(mm) | Pitch
(mm) | Open area
(%) | Edge type |
|---|
| GYF-01 | 0.9 | 4.24 | 77 | Single/ double |
|---|
| GYF-02 | 0.9 | 5.64 | 82 | Single/ double |
|---|
| GYF-03 | 1.0 | 5.5 | 79 | Single/ double |
|---|
| GYF-04 | 1.0 | 5.6 | 79.5 | Single/ double |
|---|
| GYF-05 | 1.27 | 4.3 | 67 | Single |
|---|
| GYF-06 | 1.27 | 5.5 | 73 | Single/ double |
|---|
| GYF-07 | 1.27 | 6.0 | 76 | Single/ double |
|---|
| GYF-08 | 1.27 | 6.35 | 77 | Single/ double |
|---|
| GYF-09 | 1.27 | 7.26 | 80 | Single/ double/ C-shape |
|---|
| GYF-10 | 1.40 | 6.40 | 76 | Single/ C-shape |
|---|
| GYF-11 | 1.60 | 7.26 | 75 | Single/ double/ C-shape |
|---|
| GYF-12 | 1.83 | 12.00 | 81 | Single |
|---|
| GYF-13 | 1.83 | 12.70 | 82 | Single/ C-shape |
|---|
| GYF-14 | 2.08 | 9.60 | 75 | Single/ C-shape |
|---|
| GYF-15 | 2.35 | 12.70 | 78 | Single/ C-shape |
|---|
| GYF-16 | 2.35 | 20.32 | 85 | Single |
|---|
| GYF-17 | 2.80 | 12.70 | 72 | Single/ C-shape |
|---|
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
