Flat Stainless Steel Wire Belt Conveyor For Production Line With
High Stability
The stainless steel mesh belt is a equipment that continuously
transports material by friction-driven. from the initial feeding
point to the final discharge point , forming material transport
process.
It can be carried out fragile material delivery, can also be
carried into pieces of goods delivery. In addition to pure material
delivery, but also in connect with production line process in
efficiency effect . So the metal mesh belt is widely used in a
variety of modern industrial enterprises.
The Stainless Steel Belts Application:
1) Widely used in solar power, mine, metallurgy, petroleum,
chemical, food, pharmeceuticals, glass, printing and machine making
industries;
2) Heat treament, drying, cooling, refrigerating, cleaning,
dehydration, sintering, transportation, material handling,
steaming, filtering, sludge draining, printing, etc.
3) Used in sintering furnace, annealing furnace, continuous tunnle
furnace, travelling furnace, high-temperature furnace, production
line, etc
Provide the above data , our engineer will help you design belts
1, the wire diameter
2, the wire spacing
3, through the wire diameter
4, wearing silk spacing
5, the diameter of the rod
6, the distance between the rod
7, mesh width
8, the length of the mesh belt
Some belts parameter only for reference
| Material | SUS304/310/314, galvanized steel & other grade stainless steel wire
can be applied upon requests. |
| Standrad | DIN, JIS |
| Type | Metal wire belt |
| Mesh Size | minimum 5*8mm, max 35*50mm |
| Thickness | 1.0-10.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | mainly used in printing/cleaning/heating/baking machinery units. |
| Introduction | Stainless steel wire belt is made by spiral coil through a special
mold pressing, can be reinforced by rod and chain for high load
purpose. |
| Features | 1 Acid-resisting, alkali-resisting, high temperature resisting,
strong tension and good abrasion performance
2 It also has advantage of stable, fine and high precision
filtering performance.
3 Long service life |

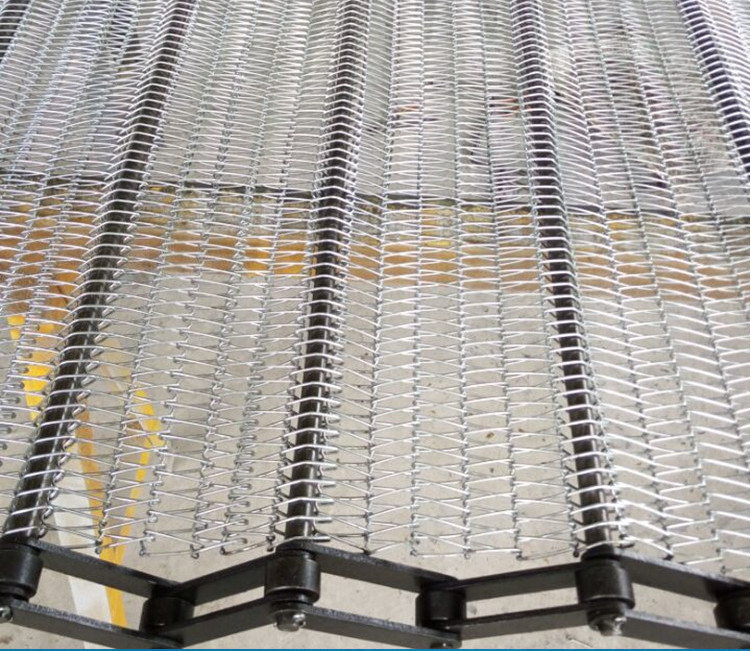

Stainless Steel Chain Belt Real Picture Show
After -Sales Service
1. Experienced technicians guidance is available on the phone, and
on the internet.
2.One or more engineers will be dispatched to your country to help
install the customers’ plants.
3.Necessary training about machine daily maintenance to local
workers is provided also. 4.After-Sales department is made of
well-trained employees and installation engineers,
5.the installation engineers are special and professional members ,
they are now strategically located home and abroad, working for our
customers.
Why Choose Us
1. We know what your needs and our solid solution ensures that our
products always runs perfectly for you!
2. We are staffed 24 hours a day, 365 days of the year. When you need assistance , our staff is always ready to deliver
friendly and helpful responses as quickly as possible. Any support
request submitted is guaranteed to receive a swift response.
3.Our products are all self-developed and innovated, ensuring optimum
performance. OEM and other customized modifies are availble for our clients.
4.At this exact moment we already export our products to over 23 contries all over the
world.Thousands of our clients and partners give us excellent feedbacks.
5.CE Certification and many other qualifications are obtained.
