Long Pitch Metric Roller Conveyor Chain, Stainless Steel Conveyor
Chain
Long pitch metric conveyor chain is widely used in coal, metallury,
sugar, ceramic, paper production machinery for highest performance.
Our roller conveyor chain advantages
1. Material: steel or stainless steel, C45, A3, Q235,Q345,
S235JR,C22, C40,42CRMO4,PA6, POM
2. Drawing as standard or approved by client before production
3. Standard: ANSI ,DIN ,JIS ,BS, ( SATI, CHIARAVALLI, BEA,MARTIN,
BROWNING,KANA)
4. Heat treatment: Harden teeth, tempering, queching
5. Process: Forging( casting)---lathe- teeth
shaping---finishing---oil washing---Packing, made by CNC machine
6. Inspection: All items are checked and tested thoroughly during
every working procedure and after the product is finally
manufactured to ensure that the best quality product enter into the
market.
7. Durable, bad condition Resistance

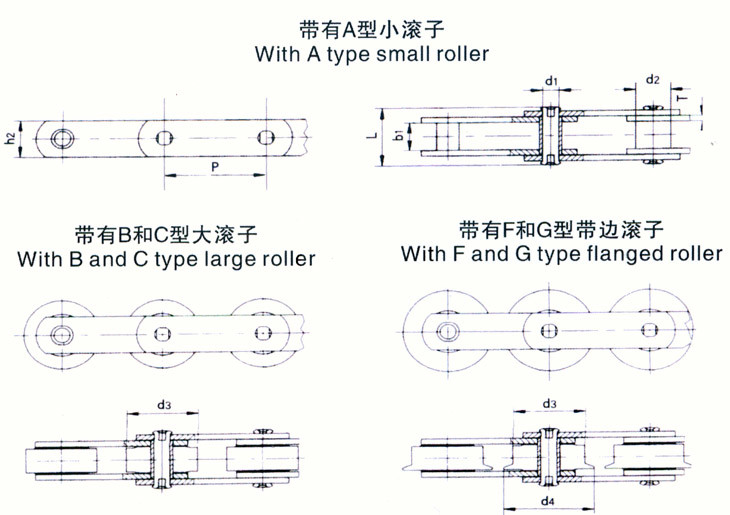

Stainless steel long pitch conveyor chain properties
ISO chains No.
| Pitch
| Width between Inner plates | Bearing pin body diameter
|
Roller diameter
| Width over bearing pin | plate depth | Plate thickness | Ultimate tensile strength |
| P | bl min | d1 max | d2 max | d3 max | d4 max | L max | h2 max | T max | Q min |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN |
| M20 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | | 15 | 6.0 | 12.5 | 25 | 35 | 35 | 19 | 2.5 | 20.0 |
| M28 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | | 17 | 7.0 | 15.0 | 30 | 40 | 40 | 21 | 3.0 | 28.0 |
| M40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | | 19 | 8.5 | 18.0 | 36 | 45 | 45 | 26 | 3.5 | 40.0 |
| M56 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | | 23 | 10.0 | 21.0 | 42 | 55 | 52 | 31 | 4.0 | 56.0 |
| M80 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | | 27 | 12.0 | 25.0 | 50 | 65 | 62 | 36 | 5.0 | 80.0 |
| M112 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 31 | 15.0 | 30.0 | 60 | 75 | 73 | 41 | 6.0 | 112.0 |
| M160 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 36 | 18.0 | 36.0 | 70 | 90 | 85 | 51 | 7.0 | 160.0 |
| M224 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 42 | 21.0 | 42.0 | 85 | 105 | 98 | 62 | 8.0 | 224.0 |
| M315 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | | 47 | 25.0 | 50.0 | 100 | 125 | 112 | 72 | 10.0 | 350.0 |
| M450 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | | 55 | 30.0 | 60.0 | 120 | 150 | 135 | 82 | 12.0 | 450.0 |
| M630 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | | 65 | 36.0 | 70.0 | 140 | 175 | 154 | 103 | 14.0 | 630.0 |
| M900 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | | 76 | 44.0 | 85.0 | 170 | 210 | 180 | 123 | 17.0 | 900.0 |
Product FAQ
Q: What's the lead time?
A: It takes 5-15 days for production in factory depends the total
quantity. Each sprocket can be custom made based customer side
exact parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
