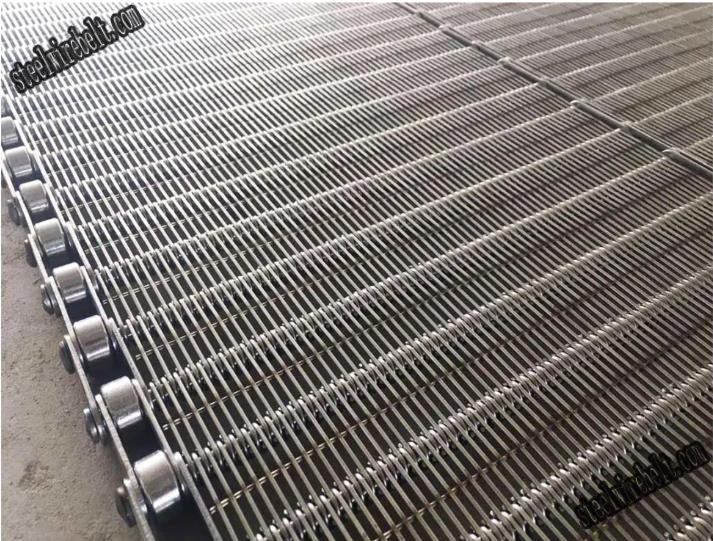

Eye link belt for cooling and freezing systems
Eye link belt is constructed by wire rings formed into 'eye' shape,
which is fixed by the underside welded wire, sleeve or the spring
with cross rods in it. Edge can be bar links or side chains. It is
suitable to convey heavy loads, unstable or fragile products which
need good support from the metal conveyor belt.
Advantages:
1. Full first-class stainless steel material.
2. Large open area, flat and stable carrying surface.
3. High load capacity, strong and robust.
4. Positive drive, no belt slip.
5. Easy to clean.
Applications:
Due to its large open area and robust design, it is very suitable
to convey heavy loads, unstable or fragile products which need good
support from the metal conveyor belt. Typical applications are as
followings: Freezing, Frying, Baking, Transport, Cooking, Heating,
Drying, Cooling, Drainage, Washing, Weed Clearing, Sorting,
Elevating, De-elevating, Loading, Grading, etc.
Specification for Stainless Steel Eye Link conveyor belt :
| Types | Belt pitch | Eye flex wire diameter | Cross rod diameter | Gap spacing (min) |
| ECB-1 | 0.98" | 0.08" | 0.2" | 0.08" |
| ECB-2 | 1.00" | 0.08" | 0.2" | 0.08" |
| ECB-3 | 1.18" | 0.06" | 0.16" | 0.06" |
| ECB-4 | 1.18" | 0.08" | 0.16" | 0.08" |
| ECB-5 | 1.18" | 0.08" | 0.2" | 0.08" |
| ECB-6 | 1.25" | 0.08" | 0.2" | 0.08" |
| ECB-7 | 1.97" | 0.06" | 0.2" | 0.06" |
| ECB-8 | 1.97" | 0.06" | 0.2" | 0.06" |
| ECB-9 | 1.97" | 0.08" | 0.2" | 0.08" |
| ECB-10 | 1.97" | 0.1" | 0.2" | 0.1" |
| ECB-11 | 1.97" | 0.1" | 0.24" | 0.1" |
| ECB-12 | 1.97" | 0.12" | 0.31" | 0.12" |
| ECB-13 | 2.00" | 0.06" | 0.2" | 0.06" |
| ECB-14 | 2.00" | 0.06" | 0.31" | 0.06" |
| ECB-15 | 2.00" | 0.08" | 0.24" | 0.08" |
| ECB-16 | 2.00" | 0.08" | 0.31" | 0.08" |
| ECB-17 | 2.00" | 0.10" | 0.24" | 0.10" |
| ECB-18 | 2.00" | 0.10" | 0.31" | 0.10" |
Product Details:
The reasons for choosing us:
1.Excellent company background
Shenzhen guangya Wire Belt Co was founded in 2005 for production of
stainless steel wire conveyor belt, plate belt, stainless steel
roller chain, belt and machinery transmission components. Being ISO
and SGS certified company, we're well recognized for high quality
and one stop purchase solution. Our products are widely used in
medcine, chemical, printing and coating machinery industries. We
have built up long term partnership with clients in both domestic
and oversea countries for reliable quality products.
2.Quick Production line
We have a solid production team with over 12 years and each
operator has been working in this industry for more than 5 years.
At the same time, we have more than 50 existing moulds to use
directly that means we can produce the specified product quickly.
3.Custom design
We have a professional engineering department for quick design upon
customer requirements.
4.Competitive price
We are running mass production model and have built up advanced
partnership with source material providers. We can save much cost
and provide very promotional offer to clients.
5.Best pre-sale and after-sales service
We have professional pre-sale and after-sales service team which
consist of many people and each has more than three years
experience. If you have any questions after you receive the cargo,
you can call us or send email all day.
Other FAQ
1.Q:How long will it take to produce and how long will it take to
get the goods?
A:It takes 5-10 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.Generally speaking, you will receive the package within
30 days and if you have any logistics problem, please contact us in
time
2.Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
3.Q:How can I know that it is qualified and has passed the
certificate?
A:This is simple, you just need to find an engineer to pass the
technical verification agreed by both parties before receiving the
goods.
P.S:If you require a unique belt or conveyor to deliver the best
conveyor performance, we will not hesitate to design and deliver a
totally customised solution for your application. Our aim is your
complete satisfaction with the performance of our products. We are
confident we can provide the right belt, sprockets and other
components you need.
