Stainless Steel Metallic Wire Mesh Conveyor Belt For Fruit
Specification
1. Removable belt conveyor for bulk food, grain delivery, stacking,
loading and unloading operations. There are 5 meters, 8 meters, 10
meters, 12 meters, 15 meters, 18 meters, 20 meters and other
specifications,
2. mobile belt conveyor with hydraulic, electric, manual three
movements. Movable belt conveyor with fast and slow speed, (can
also be equipped with speed motor, random control speed)
3. The switch in the transportation, prevent food spilling,
facilitate bulk grain transportation. Large and small wheels are
made of solid rubber wheel or pneumatic rubber wheel to prevent
crushing of grain and warehouse floor. Small wheel with automatic
steering function, to ensure that the machine moving light
Conveyor Belt For fit indurstry
Conveyor Wire Belt is widely popular in various indurstry in abroad
and home , such as
1. solar power, mine, metallurgy, petroleum, chemical, food,
pharmeceuticals, glass, printing and machine making industries;
2. Heat treament, drying, cooling, refrigerating, cleaning,
dehydration, sintering, transportation, material handling,
steaming, filtering, sludge draining, printing, etc.
3. sintering furnace, annealing furnace, continuous tunnle furnace,
travelling furnace, high-temperature furnace, production line, etc

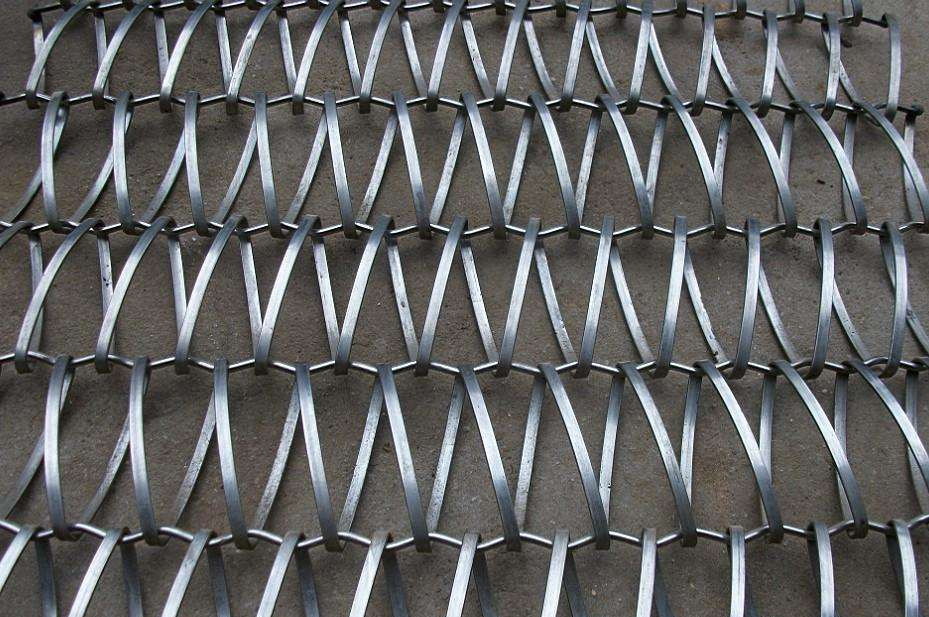

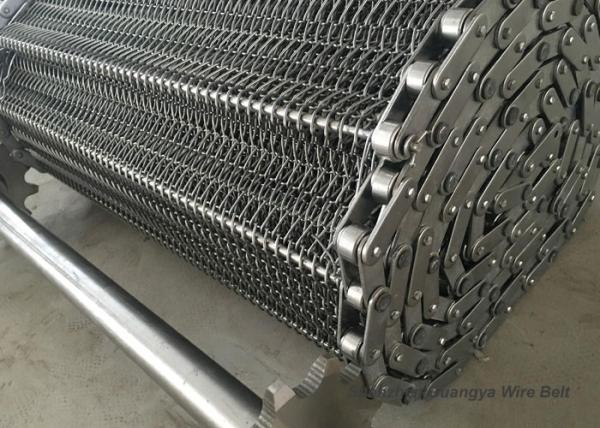

Conveyor Belt For Fruit parameter
| Item Name | specifcation | Max | Min | Remark |
Spiral wire link belt | Width | 4.0m | 0.2m | include side chain width |
| Length | 50m | 1.0m | |
| Wire diameter | 5.0mm | 0.5mm | usual 1.0 - 3.0mm |
| Spiral pitch | 20mm | 3.0mm | |
| Cross wire pitch | 50mm | 5.0mm | |
| Support rod | 12.0mm | 4.0mm | common 6.0 and 8.0mm |
| Material grade | iron steel Q195 or 235 ss 201, 304, 316L, 430 | |
| Driven type | sprockets and chains | |
Our Company Product
Balanced Wire Conveyor Belt FAQ
Q: Are you a factory or a manufacturer?
A: we are manufacturer, and we have 20 years experience in this
business..
Q: Can you supply samples, is it free?
A:most of our products has stock, so we can supply samples for free,
but you should pay for the transfer charge. and some products need
customized which have the MOQ that we cannot supply the sample..
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
