Honeycomb Wire Conveyor Mesh Belt
Honeycomb Wire Conveyor Mesh Belt , also known throughout the
industry as Flat Wire belting, is a straight-running belt with an
extremely high strength-to-weight ratio. It is available in a wide
variety of aperture configurations to suit applications as diverse
as casting, baking, drainage and packaging.
Honeycomb Wire Conveyor Mesh Belt is constructed from formed flat
wire strips connected by cross rods running through the width of
the mesh. The rods are finished with either welded button edges or
hooked edges.
It is a strong, lightweight, positively driven belt. A large open
area makes this belt particularly suitable for processes such as
washing, drying, cooking.
Honeycomb Wire Conveyor Mesh Belt Benefit
- Open mesh construction for quick drainage and free air circulation
- Flat carrying surface
- Easily cleaned
- Easily joined
- Economical
- High strength to weight ratio
- Positive sprocket drive
Honeycomb Wire Conveyor Mesh Belt Parameter
| Material | SUS304/310/314, galvanized steel & other grade stainless steel wire
can be applied upon requests. |
| Standrad | DIN, JIS |
| Type | Metal wire belt |
| Mesh Size | minimum 5*8mm, max 35*50mm |
| Thickness | 1.0-10.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | mainly used in printing/cleaning/heating/baking machinery units. |
| Introduction | Stainless steel wire belt is made by spiral coil through a special
mold pressing, can be reinforced by rod and chain for high load
purpose. |
| Features | 1 Acid-resisting, alkali-resisting, high temperature resisting,
strong tension and good abrasion performance 2 It also has advantage of stable, fine and high precision
filtering performance. 3 Long service life |
Our Advantage:
1. Our company can produce various specifications, models as per
requirement
2. High quality material with international standards with advanced
production technologies
3. Precise assembly to work with different enviroments
4. Have been powering hundreds famous clients in both China and
international clients
5. We have plenty of experience in dealing with different wire
belts production.
Loulay out

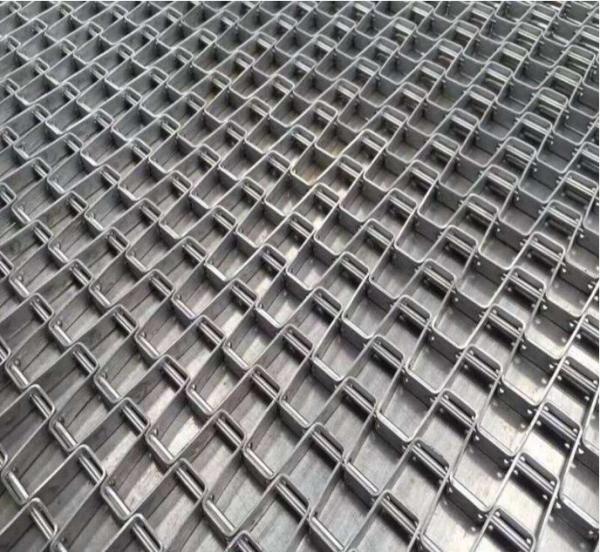

Honeycomb Wire Conveyor Mesh Belt Real Picture Show
Conveyor Belt FAQ
Q: Are you a factory or a manufacturer?
A: we are manufacturer, and we have 20 years experience in this
business..
Q: Can you supply samples, is it free?
A:most of our products has stock, so we can supply samples for free,
but you should pay for the transfer charge. and some products need
customized which have the MOQ that we cannot supply the sample..
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
