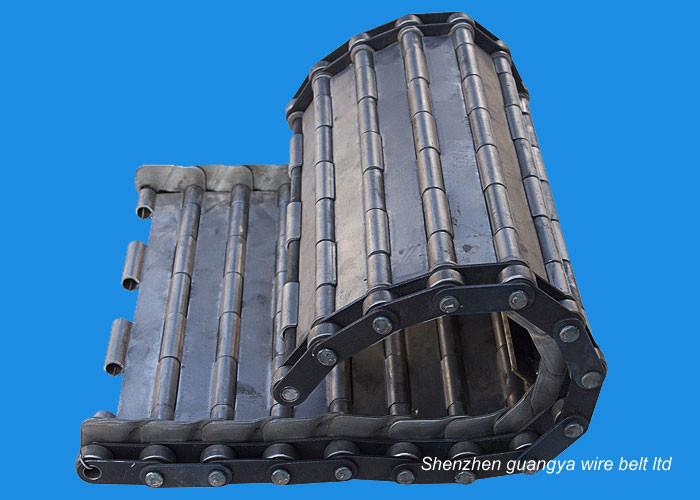

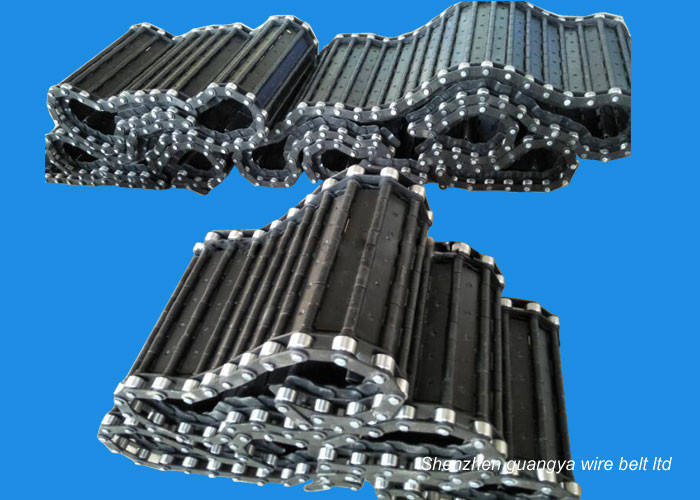

Chain Plate Conveyor Belt for Chip Debris, Steel and Stainless
Steel Available
We are established factory of chip conveyor plate belt, we have
provided with customers not only reliable chip conveying belt but
also multiple conveyor chains. The available types of this conveyor
component include carbon steel conveyor chain and stainless steel
conveyor chain, all of which have been widely used for the
conveying applications in the food, beverage, medicine, chemicals
and other industries.
OUR ADVANTAGES
- Custom design possible
- Small order acceptable
- Quick production
- 100% raw material used
- SUS304,304L, 316, 316L, 310s stainless steel available
- High precision & high quality control
- Competitive prices
- Safe packing & prompt delivery
Available widths of straight conveyor chain:
63.5,82.5,101.6,114.3,152.4,190.5,254,304.8;
Available widths of turning conveyor chain:
82.5,114.3,152.4,190.5,304.8.

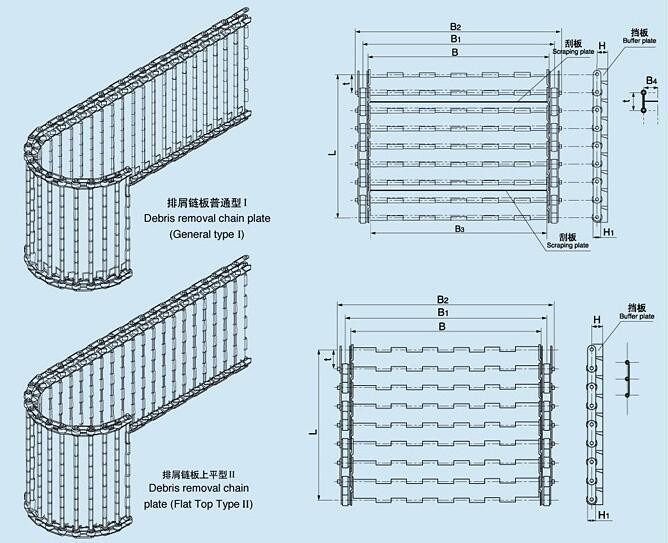

| Chain pitch | Chain width | Scrap length | Scrap height | Chain center distance | Inner section width | Baffle height | Roller diameter | Through shaft diameter |
| 31.75 | 100150200250300350400 | Width-50 | 30 | Width+18 | 9.45 | 19 | 19.05 | 5 |
| 38.1 | 100150200250300350400450500 | Width-50 | 30 | Width+23 | 12.57 | 20 | 22.23 | 8 |
| 50.8 | 150200250300350400450500550600 | Width-50 | 30 | Width+29 | 15.75 | 25 | 28.58 | 10 |
| 63.5 | 200250300350400450500550600700800 | Width-50 | 30 | Width+35 | 18.90 | 35 | 39.67 | 12 |
| 100 | 2002503003504004505005506007008009001000 | Width-50 | 30 | Width+50 | 31.75 | 50 | 57.15 | 14 |
Customized Chip Conveyor Chain
Meanwhile, customized chains are also available if required.
Specifically, the width and shape of the chain could be designed to
meet the requirements for horizontal conveyance, bending, lifting
and descending and etc.
Application
Chip plate conveyor belt is mainly used to transfer metal debris
which is hard to handle on other type belt conveyors. It's also
multi functional for various applications and suitable for big
temperature difference conditions. High efficient and durable for
heavy load. The stainless steel conveyor chains can be widely used
for the conveying applications and packaging of food, medicine,
beverage, cosmetics, cleaning products, paper products, condiments,
dairy, tobacco and other industries.
Chip Plate Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 10-20 days for production in factory depends the total
quantity. Each belt is custom made based customer side exact
parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003
and only dedicated to metal conveyor belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details
quickly by live discussion. We can also send you drawing so you can
specify needed configuration. Once the wire belt structure is
confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed
technical design.
